Eaton Tripp Lite Series HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB/IR, PoC, HDR, HDCP 2.2, 230 ft., TAA - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 3 x USB - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 3840 x 216

Features

HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft....and More

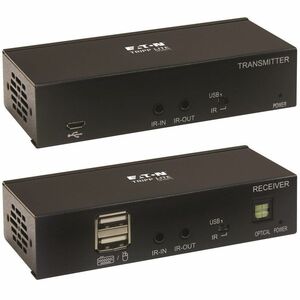

The B127A-1A1-BHBH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater or B127A-110-BH transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.

Dip Switches Extend Your Choice of Either USB or IR.
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 or bi-directional IR functions. Choose to either control the source device via keyboard and mouse or IR remote control from the display end of the installation. Only one function can be extended at a time.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-1A1-BHBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable. LEDs on both unit will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the unit where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then, connect the receiver to the display with another user-supplied HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-1A1-BHBH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

  • Connect a laptop for a video or PowerPoint presentation in an auditorium or lecture hall, where the source device changes frequently

Availability: Call or email

$300.00
$300.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB/IR, PoC, HDR, HDCP 2.2, 230 ft., TAA - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 3 x USB - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 3840 x 2160 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable - TAA Compliant

OVERVIEW:

  • Limited Warranty : 1 Year
  • Graphics Modes : 4K UHD
  • Connectivity Technology : Wired
  • Package Contents :
    • 1 x Transmitter
    • 1 x Receiver
    • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
    • 4 x International plug adapters (North America, Europe, U.K. and Australia)
    • IR-In Cable
    • IR-Out Cable
    • Mounting Hardware
    • Owner's Manual
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Number of Input Devices Supported : 1
  • Twisted Pair Cable Standard : Category 6
  • Maximum Video Resolution : 3840 x 2160
  • Number of Output Devices Supported : 1
  • Transmitter Height : 2.70"
  • Maximum Operating Distance : 230 ft
  • Transmitter Width : 11.50"
  • Country of Origin : Taiwan
  • HDMI In : Yes
  • Transmitter Depth : 6.24"
  • TAA Compliant : Yes
  • HDMI Out : Yes
  • Receiver Height : 2.70"
  • Receiver Width : 11.50"
  • Environmentally Friendly : Yes
  • Receiver Depth : 6.24"
  • Form Factor : Rack-mountable
  • Form Factor : Wall Mountable
  • Transmitter Weight (Approximate) : 15.87 oz
  • USB : Yes
  • Receiver Weight (Approximate) : 15.87 oz
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of Network (RJ-45) Ports : 2
  • Number of USB Ports : 3
  • Number of HDMI Inputs : 1
  • Number of HDMI Outputs : 1
  • Additional Info

    Additional Info

    SKU 01731B127A1A1BHBH-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number B127A-1A1-BHBH
    Width 1
    Length 1
    Height 1
    Product ID 01731B127A1A1BHBH
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
