Eaton Tripp Lite Series HDBaseT HDMI over Cat5e/6/6a Extender Receiver, Serial and IR, 4K x 2K 30 Hz UHD / 1080p 60 Hz, Up to 328 ft. (100 m), TAA - 1 Output Device - 328 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Serial Port - 4K - 3840 x 2160 - Twi

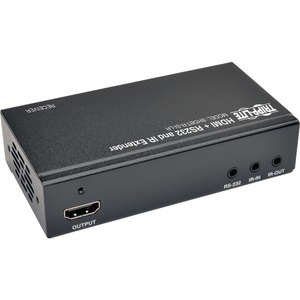

The BHDBT-R-SI-LR HDBaseT Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals.

Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.

You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.

The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.

More from the Manufacturer

Availability: Call or email

$180.00
$180.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series HDBaseT HDMI over Cat5e/6/6a Extender Receiver, Serial and IR, 4K x 2K 30 Hz UHD / 1080p 60 Hz, Up to 328 ft. (100 m), TAA - 1 Output Device - 328 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Serial Port - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Wall Mountable, Rack-mountable, Pole-mountable"

OVERVIEW:

  • Limited Warranty : 1 Year
  • Graphics Modes : 4K
  • Connectivity Technology : Wired
  • Color Family : Black
  • Package Contents :
    • BHDBT-R-SI-LR HDBaseT HDMI over Cat5e/6/6a Extender Receiver
    • IR-IN Cable
    • IR-OUT Cable
    • 3.5 mm Male to DB9 Female Adapter Cable
    • 3.5 mm Male to DB9 Male Adapter Cable
    • External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
    • Mounting Hardware
    • Owner's Manual
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Product Color : Black
  • Twisted Pair Cable Standard : Category 6a
  • Maximum Video Resolution : 3840 x 2160
  • Number of Output Devices Supported : 1
  • Maximum Operating Distance : 328 ft
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • HDMI Out : Yes
  • Receiver Height : 1.10"
  • Receiver Width : 4.50"
  • Environmentally Friendly : Yes
  • Receiver Depth : 2.50"
  • Form Factor : Pole-mountable
  • Form Factor : Rack-mountable
  • Form Factor : Wall Mountable
  • Receiver Weight (Approximate) : 8.80 oz
  • Number of Network (RJ-45) Ports : 1
  • Number of HDMI Outputs : 1
  • Additional Info

    Additional Info

    SKU 01731BHDBTRSILR-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number BHDBT-R-SI-LR
    Width 1
    Length 1
    Height 1
    Product ID 01731BHDBTRSILR
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
