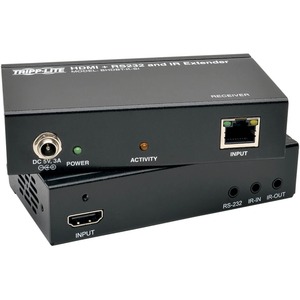

Eaton Tripp Lite Series HDBaseT Class B (HDBaseT-Lite) HDMI Over Cat5e/6/6a Extender Kit, Serial & IR Control, 4K x 2K 30 Hz UHD / 1080p 60 Hz, Up to 230 ft. (70 m), TAA - 1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out

The BHDBT-K-SI HDBaseT Class B(HDBaseT-Lite) Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 230 feet(70 m) over a single Cat5e/6/6a cable, including a 1920 x 1080(1080p) signal @ 60 Hz. Or you can extend an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz video signal up to 130 feet(40 m). Add up to five Tripp Lite BHDBT-TR-SI transceivers(sold separately) between the transmitter and receiver units to further expand the range up to 780 feet(3840 x 2160 @ 24/30Hz) or 1,380 feet(1080p @ 60Hz) with a monitor connected via HDMI port to each transceiver.You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI's 2-way IR Remote Control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.The BHDBT-K-SI supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There's no software to download or install, and you can have the BHDBT-K-SI Extender Kit set up and ready to go quickly. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.

More from the Manufacturer

Availability: Call or email

$250.00
$250.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series HDBaseT Class B (HDBaseT-Lite) HDMI Over Cat5e/6/6a Extender Kit, Serial & IR Control, 4K x 2K 30 Hz UHD / 1080p 60 Hz, Up to 230 ft. (70 m), TAA - 1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable"

OVERVIEW:

  • Limited Warranty : 1 Year
  • Graphics Modes : 4K
  • Connectivity Technology : Wired
  • Color Family : Black
  • Package Contents :
    • Transmitter
    • Receiver
    • IR-IN and IR-OUT Cables
    • 3.5 mm Male to DB9 Female Adapter Cable
    • 3.5 mm Male to DB9 Male Adapter Cable
    • 2 x  External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A)
    • Mounting Hardware
    • Owner's Manual
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Number of Input Devices Supported : 1
  • Product Color : Black
  • Twisted Pair Cable Standard : Category 6a
  • Maximum Video Resolution : 3840 x 2160
  • Number of Output Devices Supported : 1
  • Maximum Operating Distance : 230 ft
  • Country of Origin : Taiwan
  • HDMI In : Yes
  • TAA Compliant : Yes
  • HDMI Out : Yes
  • Environmentally Friendly : Yes
  • Form Factor : Rack-mountable
  • Form Factor : Wall Mountable
  • Form Factor : Pole-mountable
  • Transmitter Weight (Approximate) : 1.05 lb
  • Number of Network (RJ-45) Ports : 2
  • Number of HDMI Inputs : 1
  • Number of HDMI Outputs : 1
  • Additional Info

    Additional Info

    SKU 01731BHDBTKSI-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number BHDBT-K-SI
    Width 1
    Length 1
    Height 1
    Product ID 01731BHDBTKSI
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
