Eaton Tripp Lite Series DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA - 1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - Full HD - 1920 x 1080 - T

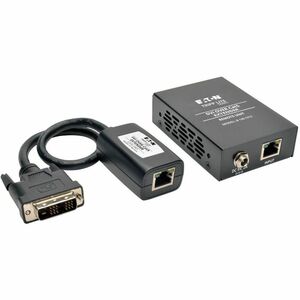

The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

More from the Manufacturer

Availability: Call or email

$321.60
$321.60

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA - 1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Wall Mountable - TAA Compliant

OVERVIEW:

  • Limited Warranty : 1 Year
  • Graphics Modes : Full HD
  • Connectivity Technology : Wired
  • Color Family : Black
  • Package Contents :
    • B140-101X Local Transmitter Unit
    • B140-101X Remote Receiver Unit
    • Screwdriver (used for Equalization control)
    • Mounting Hardware for Receiver Unit
    • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
    • Owner's Manual
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Number of Input Devices Supported : 1
  • Product Color : Black
  • Twisted Pair Cable Standard : Category 6
  • DVI In : Yes
  • Maximum Video Resolution : 1920 x 1080
  • Number of Output Devices Supported : 1
  • DVI Out : Yes
  • Maximum Operating Distance : 200 ft
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • Form Factor : Wall Mountable
  • Number of Network (RJ-45) Ports : 2
  • Number of DVI Inputs : 1
  • Number of DVI Outputs : 1
  • Additional Info

    Additional Info

    SKU 01731B140101X-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Tripp Lite by Eaton
    Manufacturer Part Number B140-101X
    Width 1
    Length 1
    Height 1
    Product ID 01731B140101X
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
