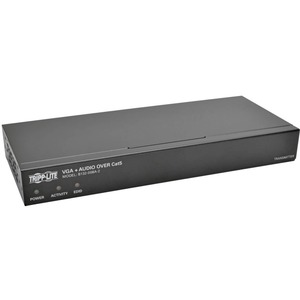

Eaton Tripp Lite Series 8-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA - 1 Input Device - 1000 ft Range - 8 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Category

The B132-008A-2 8-Port VGA + Audio over Cat5/Cat6 Extender/Splitter works with a B132-100A or B132-100A-WP-1 remote receiver to split a VGA audio/video signal into nine separate signals-one local and eight remote. It's ideal for digital signs, trade shows and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.

The B132-008A-2 uses VGA cable(such as Tripp Lite's P504-Series) to connect to the source and displays and Cat5e/6 cable to transmit to the remote receivers. For best results, use 24 AWG solid-wire N022-01K-GY(Cat5e) or N222-01K-GY(Cat6) cable.

When used with Tripp Lite's B132-Series active remote receivers, the B132-008A-2 can extend a 1920 x 1440(60 Hz) signal up to 500 feet and a 1024 x 768(60 Hz) signal up to 1,000 feet. By daisy-chaining up to six units, one audio/video source can transmit to as many as 49 displays-48 remote and one local.

Add up to three B132-110A remote repeaters to each channel to fully extend the signal range or add more displays. You can extend a 1920 x 1440(60 Hz) signal up to 500 feet or a 1024 x 768(60 Hz) signal up to 1,000 feet from the first repeater in the chain to the last receiver.

The B132-008A-2 also delivers high-quality audio and copies EDID information from a connected display to ensure optimal compatibility. Easy to set up with no Software Or Drivers To Install. Mounts To A Wall, Rack Or Pole Using The Included Hardware.

More from the Manufacturer

Availability: Call or email

$260.00
$260.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 8-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA - 1 Input Device - 1000 ft Range - 8 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant

OVERVIEW:

  • Limited Warranty : 1 Year
  • Connectivity Technology : Wired
  • Color Family : Black
  • Package Contents :
    • B132-008A-2 8-Port VGA + Audio over Cat5/6 Extender Splitter
    • External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
    • VGA + Audio Daisy-Chain Cable, 1 ft.
    • Mounting Hardware
    • Owner'S Manual
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Number of Input Devices Supported : 1
  • Product Color : Black
  • Twisted Pair Cable Standard : Category 6
  • Maximum Video Resolution : 1920 x 1440
  • Maximum Operating Distance : 1000 ft
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Receiver Height : 1.20"
  • VGA In : Yes
  • Receiver Width : 9.30"
  • VGA Out : Yes
  • Receiver Depth : 3.90"
  • Form Factor : Pole-mountable
  • Form Factor : Rack-mountable
  • Form Factor : Wall Mountable
  • Receiver Weight (Approximate) : 1.50 lb
  • Number of Network (RJ-45) Ports : 8
  • Number of VGA Inputs : 1
  • Number of VGA Outputs : 1
