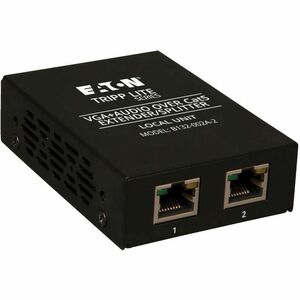

Eaton Tripp Lite Series 2-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA - with EDID Copy, 1920x1440 at 60Hz

Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).

The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

More from the Manufacturer

Availability: Call or email

$148.80
$148.80
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 2-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA - with EDID Copy, 1920x1440 at 60Hz

OVERVIEW:

  • Limited Warranty : 1 Year
  • Connectivity Technology : Wired
  • Color Family : Black
  • Package Contents :
    • VGA + Audio over Cat5 Extender 2-Port Transmitter
    • Mounting Hardware
    • External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
    • Owner's Manual
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Number of Input Devices Supported : 1
  • Product Color : Black
  • Twisted Pair Cable Standard : Category 6
  • Maximum Video Resolution : 1920 x 1440
  • Transmitter Height : 1"
  • Maximum Operating Distance : 1000 ft
  • Transmitter Width : 2.50"
  • Country of Origin : Taiwan
  • Transmitter Depth : 3.70"
  • TAA Compliant : Yes
  • VGA In : Yes
  • Environmentally Friendly : Yes
  • Form Factor : Pole-mountable
  • Form Factor : Rack-mountable
  • Form Factor : Wall Mountable
  • Transmitter Weight (Approximate) : 7.20 oz
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of Network (RJ-45) Ports : 2
  • Number of VGA Inputs : 1
  • Additional Info

    Additional Info

    SKU 01731B132002A2-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number B132-002A-2
    Width 1
    Length 1
    Height 1
    Product ID 01731B132002A2
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
