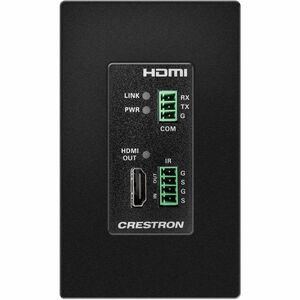

The HD-RXC-4KZ-101-1G is a DM® Essentials 4K60 4:4:4 wall plate receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (CrestronDM-CBL-8GorDM-CBL-ULTRAsold separately) is needed to connect the HD-RXC-4KZ-101-1G to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
The HD-RXC-4KZ-101-1G is available in black (model HD-RXC-4KZ-101-1G-B).
Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher
The DM Essentials input port of the HD-RXC-4KZ-101-1G must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are theHD-TXC-4KZ-101andHD-TXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402, andHD-PS401.
The HD-RXC-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-RXC-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-RXC-4KZ-101-1G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-RXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
One-Gang Wall Plate Design
The HD-RXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-RXC-4KZ-101-1G can receive power from the remote DM Essentials transmitter (surface mountable only) or DMPS Essentials switcher.3
Key Features
- Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
- Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- Bidirectional RS-232 and IR pass-through capability
- EDID pass-through capability
- One-gang wall plate design with black finish
- Decorator style faceplate required (FP-G Series sold separately)
- Power from the remote DM Essentials transmitter (surface mountable only) or DMPS Essentials switcher
