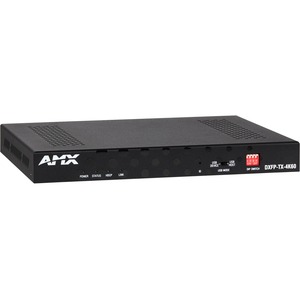

AMX DXLink 4K60 HDMI Fiber Transmitter Module - 1 Input Device - 1804.46 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - 2160p - 4K - Optical Fiber - Surface-mountable, Pole-mountable, Rail-mountable - TAA Compliant

The DXLink 4K60 HDMI Fiber Transmitter is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for pixel-for-pixel image reproduction without chroma subsampling. It transmits audio, video, control, USB 2.0, and Ethernet over duplex fiber to a DXLink Fiber receiver, up to 550 meters away. This module includes a Multi-Mode Duplex (MMD) SFP+ module, which can be replaced with a Single-Mode Duplex (SMD) SFP+ module if needed.

Common Applications

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber input cards and DXLink 4K60 Fiber receivers. It is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.

Availability: Call or email

$1,909.20
$1,909.20

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

AMX DXLink 4K60 HDMI Fiber Transmitter Module - 1 Input Device - 1804.46 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - 2160p - 4K - Optical Fiber - Surface-mountable, Pole-mountable, Rail-mountable - TAA Compliant

OVERVIEW:

  • Graphics Modes : 4K
  • Connectivity Technology : Wired
  • Package Contents :
    • DXLink 4K60 HDMI Fiber Transmitter Module
    • Power Supply With Power Cord
  • Media Type Supported : Optical Fiber
  • Network (RJ-45) : Yes
  • Supported Video Modes : 2160p
  • Number of Input Devices Supported : 1
  • Transmitter Height : 0.98"
  • Maximum Operating Distance : 1804.46 ft
  • Transmitter Width : 8.66"
  • HDMI In : Yes
  • Transmitter Depth : 6.30"
  • TAA Compliant : Yes
  • HDMI Out : Yes
  • Form Factor : Rail-mountable
  • Form Factor : Pole-mountable
  • Form Factor : Surface-mountable
  • Transmitter Weight (Approximate) : 1.94 lb
  • USB : Yes
  • Number of Network (RJ-45) Ports : 1
  • Number of USB Ports : 2
  • Number of HDMI Inputs : 1
  • Number of HDMI Outputs : 1
  • Additional Info

    Additional Info

    SKU 05080FG101036502-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Harman International Industries, Inc
    Manufacturer Part Number FG1010-365-02
    Width 1
    Length 1
    Height 1
    Product ID 05080FG101036502
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
