ATEN USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 656.17 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - 5.3 V DC Input Voltage

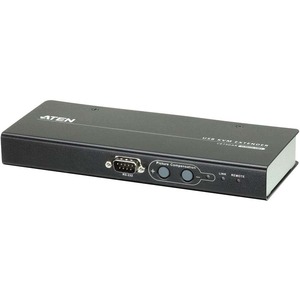

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).


Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.

The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).

More from the Manufacturer

Availability: Call or email

$434.30
$434.30

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ATEN USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 656.17 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - 5.3 V DC Input Voltage

OVERVIEW:

  • Limited Warranty : 2 Year
  • Graphic Mode : WUXGA
  • Connectivity Technology : Wired
  • Input Voltage : 5.3 V DC
  • Package Contents :
    • 1 x CE750AL USB KVM Extender (Local Unit)
    • 1 x CE750AR USB KVM Extender (Remote Unit)
    • 1 x Custom KVM Cable Set
    • 2 x Power Adapters
    • 1 x Mounting Kit
    • 1 x User Instructions
  • Maximum Video Resolution : 1920 x 1200
  • Network (RJ-45) : Yes
  • Number of Computers Supported : 1
  • Environmentally Friendly : Yes
  • Number of Local Users Supported : 1
  • USB : Yes
  • Number of Remote Users Supported : 1
  • Transmitter Height : 0.98"
  • Maximum Operating Distance : 656.17 ft
  • Transmitter Width : 3.40"
  • Transmitter Depth : 7.95"
  • Receiver Height : 0.98"
  • Country of Origin : Taiwan
  • Receiver Width : 3.35"
  • Receiver Depth : 7.95"
  • VGA : Yes
  • Transmitter Weight (Approximate) : 1.04 lb
  • Receiver Weight (Approximate) : 1.04 lb
  • Number of VGA Ports : 2
  • Number of Network (RJ-45) Ports : 2
  • Number of USB Ports : 4
  • Additional Info

    Additional Info

    SKU 01205CE750A-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer ATEN Technology, Inc
    Manufacturer Part Number CE750A
    Width 1
    Length 1
    Height 1
    Product ID 01205CE750A
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
