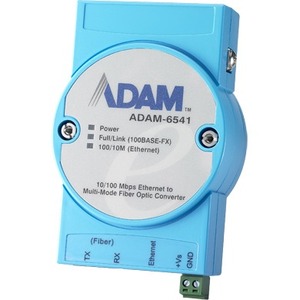

Advantech Ethernet to Multi-mode SC Type Fiber Optic Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 100Base-FX, 10/100Base-TX - 2 km - AC Adapter - Rail-mountable, Wall Mountable, Panel-mountable

ADAM-6541 is designed to convert Ethernet networks to fiber networks. It does so by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. Therefore, ADAM-6541 is an ideal solution for "fiber to building" applications at central offices or local sites.

ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.

ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from 10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.

Availability: Call or email

$175.90
$175.90

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Advantech Ethernet to Multi-mode SC Type Fiber Optic Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 100Base-FX, 10/100Base-TX - 2 km - AC Adapter - Rail-mountable, Wall Mountable, Panel-mountable

OVERVIEW:

  • Power Source : AC Adapter
  • Media Type Supported : Twisted Pair
  • Media Type Supported : Optical Fiber
  • Total Number of Ports : 2
  • Form Factor : Panel-mountable
  • Form Factor : Wall Mountable
  • Form Factor : Rail-mountable
  • Ethernet Technology : Fast Ethernet
  • Fiber Mode Supported : Multi-mode
  • Network (RJ-45) : Yes
  • Height : 4.4"
  • Network Technology : 10/100Base-TX
  • Network Technology : 100Base-FX
  • Environmentally Friendly : Yes
  • DVI : No
  • Width : 2.8"
  • USB : No
  • Depth : 1.1"
  • Management Port : No
  • Maximum Distance Supported : 2 km
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of Network (RJ-45) Ports : 1
  • Number of SC Ports : 1
  • SC Port Type : Duplex
  • Additional Info

    Additional Info

    SKU 01074ADAM6541AE-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number ADAM-6541-AE
    Width 2.8"
    Length 1
    Height 4.4"
    Product ID 01074ADAM6541AE
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
