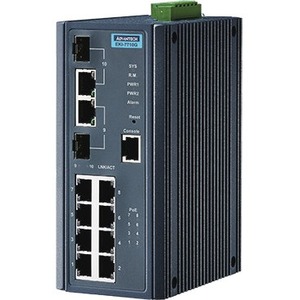

Advantech 8GE + 2G Combo Port Managed PoE Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-TX - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - 120 W PoE Budget - Optical Fiber, Twisted Pair -

The EKI-7710G-2CP/2CPI support 8 Gigabit PoE ports and 2 Gigabit combo ports. They provide up to 30W per port for high-power-consumption powered devices. They come embedded with Advantech IXM function, which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability

Availability: Call or email

$1,447.05
$1,447.05

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Advantech 8GE + 2G Combo Port Managed PoE Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-TX - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - 120 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : Yes
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 2
  • Media Type Supported : Twisted Pair
  • Media Type Supported : Optical Fiber
  • Total Number of Network Ports : 8
  • PoE Budget : 120 W
  • Product Material : Metal
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.1ab
  • Networking Standards : IEEE 802.1ad
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.3ad
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1D
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.3af
  • Networking Standards : IEEE 802.3x
  • Networking Standards : IEEE 802.3z
  • Networking Standards : IEEE 802.3ab
  • Networking Standards : IEEE 802.3u
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 2.0
  • Network (RJ-45) : Yes
  • Input Voltage : 48 V DC
  • Input Voltage : 24 V DC
  • Environmentally Friendly : Yes
  • Network Technology : 10/100/1000Base-TX
  • Network Technology : 1000Base-X
  • Expansion Slot Type : SFP (mini-GBIC)
  • Uplink Port : No
  • Power Source : DC
  • Form Factor : DIN Rail Mountable
  • Form Factor : Wall Mountable
  • Shared SFP Slot : Yes
  • Modular : Yes
  • Redundant Power Supply Supported : Yes
  • Height : 6"
  • Number of SFP Slots : 2
  • Stack Port : No
  • Width : 2.9"
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet Network
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 8 x Gigabit Ethernet Network
  • Depth : 4.1"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 12.10 W
  • Country of Origin : Taiwan
  • Additional Info

    Additional Info

    SKU 01074EKI7710G2CPBE-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number EKI-7710G-2CP-AE
    Width 2.9"
    Length 1
    Height 6"
    Product ID 01074EKI7710G2CPBE
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
