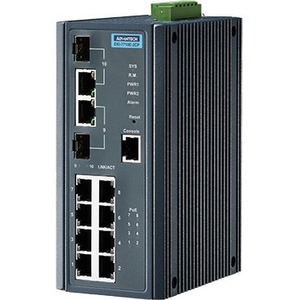

Advantech 8FE + 2G Combo Port Managed PoE Ethernet Switch - 8 Ports - Manageable - Fast Ethernet, Gigabit Ethernet - 10/100Base-TX, 1000Base-X, 1000Base-T - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - 120 W PoE Budget - Twisted

The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.

Availability: Call or email

$1,171.26
$1,171.26

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Advantech 8FE + 2G Combo Port Managed PoE Ethernet Switch - 8 Ports - Manageable - Fast Ethernet, Gigabit Ethernet - 10/100Base-TX, 1000Base-X, 1000Base-T - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - 120 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable - 5 Year Limited Warranty

OVERVIEW:

  • Limited Warranty : 5 Year
  • Manageable : Yes
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 2
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 8
  • PoE Budget : 120 W
  • Product Material : Metal
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.3ad
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.3af
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.1D
  • Ethernet Technology : Gigabit Ethernet
  • Ethernet Technology : Fast Ethernet
  • Total Number of Expansion Slots : 2.0
  • Network (RJ-45) : Yes
  • Input Voltage : 48 V DC
  • Input Voltage : 24 V DC
  • Environmentally Friendly : Yes
  • Network Technology : 1000Base-T
  • Network Technology : 1000Base-X
  • Network Technology : 10/100Base-TX
  • Expansion Slot Type : SFP (mini-GBIC)
  • Uplink Port : No
  • Power Source : DC
  • Form Factor : DIN Rail Mountable
  • Shared SFP Slot : Yes
  • Modular : Yes
  • Redundant Power Supply Supported : Yes
  • Height : 6"
  • Number of SFP Slots : 2
  • Stack Port : No
  • Width : 2.9"
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 2 x Gigabit Ethernet Network
  • Port/Expansion Slot Details : 8 x Fast Ethernet Network
  • Depth : 4.1"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Power Consumption : 12.10 W
  • Additional Info

    Additional Info

    SKU 01074EKI7710E2CPBE-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number EKI-7710E-2CP-AE
    Width 2.9"
    Length 1
    Height 6"
    Product ID 01074EKI7710E2CPBE
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
