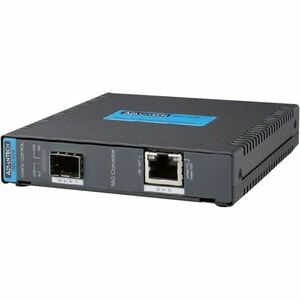

Advantech 10G Stand Alone Hardened Ethernet Media Converter - 1 x Network (RJ-45) - Single-mode, Multi-mode - 10 Gigabit Ethernet - 10GBase-X, 10GBase-SR, 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-T - 80 km - 1 x Expansion Slots - SFP+ - 1 x SF

IMC-610 SFP+ 10G Medial Converter is equipped with one 10G/5G/2.5G/1G/100M BASE-T auto-negotiation port and one 10GBASE-X SFP+ Slot. It supports 10Gigabit Ethernet media converter from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10BASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels, which supports the transmission distance from 400m up to 80km to facilitate 10G equipment and devices deployment.

Availability: Call or email

$680.00
$680.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Advantech 10G Stand Alone Hardened Ethernet Media Converter - 1 x Network (RJ-45) - Single-mode, Multi-mode - 10 Gigabit Ethernet - 10GBase-X, 10GBase-SR, 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-T - 80 km - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - AC/DC - DIN Rail Mountable, Panel-mountable, Standalone

OVERVIEW:

  • Power Source : AC/DC
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Expansion Slots : 1
  • Total Number of Ports : 1
  • Form Factor : Standalone
  • Form Factor : Panel-mountable
  • Form Factor : DIN Rail Mountable
  • Ethernet Technology : 10 Gigabit Ethernet
  • Fiber Mode Supported : Multi-mode
  • Fiber Mode Supported : Single-mode
  • Network (RJ-45) : Yes
  • Height : 0.9"
  • Network Technology : 100Base-T
  • Network Technology : 1000Base-T
  • Network Technology : 2.5GBase-T
  • Network Technology : 5GBase-T
  • Network Technology : 10GBase-T
  • Network Technology : 10GBase-SR
  • Network Technology : 10GBase-X
  • Environmentally Friendly : Yes
  • Expansion Slot Type : SFP+
  • Width : 4.3"
  • Depth : 4"
  • Number of SFP+ Slots : 1
  • Maximum Distance Supported : 80 km
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Fiber Optic Cable Core/Cladding Specification : 9/125 µm
  • Fiber Optic Cable Core/Cladding Specification : 62.5/125 µm
  • Fiber Optic Cable Core/Cladding Specification : 50/125 µm
  • Number of Network (RJ-45) Ports : 1
  • Additional Info

    Additional Info

    SKU 01074IMC610A-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number IMC-610-A
    Width 4.3"
    Length 1
    Height 0.9"
    Product ID 01074IMC610A
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
