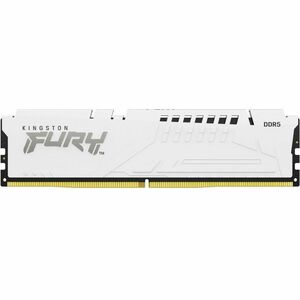

Kingston 64GB (2x32GB) DDR5 6000MT/s CL30 FURY Beast White EXPO - 64 GB (2 X 32GB) - DDR5-6000/PC5-48000 DDR5 SDRAM - 6000 MHz Dual-rank Memory - CL30 - 1.40 V - Non-ECC - Unbuffered - 288-pin - DIMM - Lifetime Warranty

Kingston FURY KF560C30BWEK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
• EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
• XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
• XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37" (34.9mm), w/heatsink
