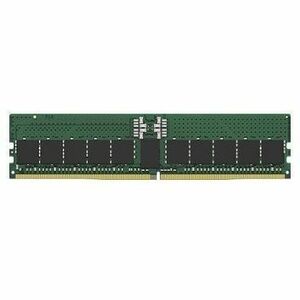

Kingston 48GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 48 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

Kingston 48GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 48 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

Kingston's KSM56R46BS4PMI-48HMI is a 6G x 80-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
x80 ECC (x40, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
PCB: Height 1.23" (31.25mm)
RoHS Compliant and Halogen-Free

Availability: Call or email

$358.00

Qty:

Description

Details

Kingston 48GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 48 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

OVERVIEW:

Limited Warranty : Lifetime

Memory Size : 48 GB

Memory Technology : DDR5 SDRAM

Number of Pins : 288-pin

Compatibility :

ASRock - Server Board SPC741D16QM3-2L2Q
ASRock - Server Board SPC741D8-2L2T/BCM
ASRock - Server Board SPC741D8HM3
ASRock - Server Board SPC741D8QM3-2T
ASRock - Server Board SPC741D8QM3-2T/X550
ASRock - Server Board SPC741D8UD-2T/X550
Gigabyte - MS33-AR0 Motherboard
Gigabyte - MS33-AR1 Motherboard
Supermicro - B13DEE Motherboard
Supermicro - B13DET Motherboard
Supermicro - B13SEE-CPU-25G Motherboard
Supermicro - B13SEG Motherboard
Supermicro - Blade SBI-421E-1T3N (B13DET)
Supermicro - Blade SBI-421E-5T3N (B13DET)
Supermicro - Blade SBI-611E-1C2N (B13SEE-CPU-25G)
Supermicro - Blade SBI-611E-1T2N (B13SEE-CPU-25G)
Supermicro - Blade SBI-611E-5T2N (B13SEE-CPU-25G)
Supermicro - Blade SBI-621E-1C3N (B13DEE)
Supermicro - Blade SBI-621E-1T3N (B13DEE)
Supermicro - Blade SBI-621E-5T3N (B13DEE)
Supermicro - CloudDC SuperServer SYS-121C-TN10R (Super X13DDW-A)
Supermicro - CloudDC SuperServer SYS-121C-TN2R (Super X13DDW-A)
Supermicro - CloudDC SuperServer SYS-611C-TN4R (Super X13DDW-A)
Supermicro - CloudDC SuperServer SYS-621C-TN12R (Super X13DDW-A)
Supermicro - GPU SuperServer SYS-221GE-NR (Super X13DEH)
Supermicro - GPU SuperServer SYS-421GE-TNRT (Super X13DEG-OA)
Supermicro - GPU SuperServer SYS-421GE-TNRT3 (Super X13DEG-OA)
Supermicro - GPU SuperServer SYS-421GU-TNXR (Super X13DGU)
Supermicro - GPU SuperServer SYS-521GE-TNRT (Super X13DEG-OA)
Supermicro - GPU SuperServer SYS-521GU-TNXR (Super X13DGU)
Supermicro - GPU SuperServer SYS-741GE-TNRT (Super X13DEG-QT)
Supermicro - GPU SuperServer SYS-751GE-TNRT (Super X13DEG-QT)
Supermicro - GPU SuperServer SYS-751GE-TNRT-NV1 (Super X13DEG-QT)
Supermicro - GPU SuperServer SYS-821GE-TNHR (Super X13DEG-OAD)
Supermicro - GPU SuperServer SYS-821GV-TNR (Super X13DEG-PVC)
Supermicro - Hyper SuperServer SYS-121H-TNR (Super X13DEM)
Supermicro - Hyper SuperServer SYS-221H-TN24R (Super X13DEM)
Supermicro - Hyper SuperServer SYS-221H-TNR (Super X13DEM)
Supermicro - Hyper SuperServer SYS-621H-TN12R (Super X13DEM)
Supermicro - Iot SuperServer SYS-111E-FWTR (Super X13SEW-TF)
Supermicro - IoT SuperServer SYS-211E-FRDN13P (Super X13SEVR-SP13F)
Supermicro - IoT SuperServer SYS-211E-FRDN2T (Super X13SEM-TF)
Supermicro - IoT SuperServer SYS-211E-FRN2T (Super X13SEM-TF)
Supermicro - IoT SuperServer SYS-221HE-FTNR (Super X13DEM)
Supermicro - IoT SuperServer SYS-221HE-FTNRD (Super X13DEM)
Supermicro - IoT SuperServer SYS-221HE-TNR (Super X13DEM)
Supermicro - Mainstream SuperServer SYS-221P-C9R (Super X13DEI)
Supermicro - Mainstream SuperServer SYS-221P-C9RT (Super X13DEI-T)
Supermicro - Mainstream SuperServer SYS-621P-TR (Super X13DEI)
Supermicro - Mainstream SuperServer SYS-621P-TRT (Super X13DEI-T)
Supermicro - Mainstream SuperServer SYS-741P-TR (Super X13DEI-T)
Supermicro - Mainstream SuperServer SYS-741P-TRT (Super X13DEI-T)
Supermicro - Storage SuperServer SSG-121E-NE316R (Super X13DSF-A)

https://www.kingston.com/en/memory/search/systemdevices?partid=KSM56R46BS4PMI-48HMI

Memory Voltage : 1.10 V

Form Factor : DIMM

Thickness : 151.6 mil

Memory Speed : 5600 MHz

Width : 1.2"

Memory Standard : DDR5-5600/PC5-44800

Length : 5.3"

Memory Rank : Single-rank

Environmentally Friendly : Yes

Error Checking : ECC

Environmental Certification : Hazard Assessment of Perfluorooctane Sulfonate (PFOS)

Signal Processing : Registered

CAS Latency : CL46

Device Supported : Motherboard

Device Supported : Server

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)

Additional Info

SKU	02260KSM56R46BS4PMI48HMI-BF
Weight	1.0000
Is Featured	N/A
Manufacturer	Kingston Technology Company
Manufacturer Part Number	KSM56R46BS4PMI-48HMI
Width	1.2"
Length	5.3"
Height	1
Product ID	02260KSM56R46BS4PMI48HMI
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

Kingston 48GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 48 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty
