Kingston 16GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 16 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

Kingston 16GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 16 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

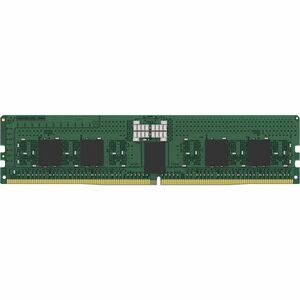

Kingston's KSM56R46BS8PMI-16MDI is a 2G x 80-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
x80 ECC (x40, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
PCB: Height 1.23" (31.25mm)
RoHS Compliant and Halogen-Free

Availability: Call or email

$131.00

Qty:

Description

Details

Kingston 16GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 16 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

OVERVIEW:

Limited Warranty : Lifetime

Memory Size : 16 GB

Memory Technology : DDR5 SDRAM

Number of Pins : 288-pin

Compatibility :

ASRock - Server 1U12E-EGS/2L2Q
ASRock - Server 1U12E-EGS2
ASRock - Server 1U4L-EGS/2T
ASRock - Server 1U4L4E-EGS/2T
ASRock - Server 1U8S4E-EGS/2T
ASRock - Server 2U24E-EGS2
ASRock - Server 2U4G8E-EGS2
ASRock - Server 4U10G-EGS2
ASRock - Server 4U36L6E-EGS/2T
ASRock - Server 4U8G-EGS2
ASRock - Server Board SP2C741D16-2T
ASRock - Server Board SP2C741D16HM3
ASRock - Server Board SP2C741D16NQM3-2Q
ASRock - Server Board SP2C741D16X-2T
ASRock - Server Board SP2C741D32G-2L+
ASRock - Server Board SP2C741D32TM3
ASRock - Server Board SPC741D16QM3-2L2Q
ASRock - Server Board SPC741D8-2L2T/BCM
ASRock - Server Board SPC741D8HM3
ASRock - Server Board SPC741D8QM3-2T
ASRock - Server Board SPC741D8QM3-2T/X550
ASRock - Server Board SPC741D8UD-2T/X550
ASRock - TRX50 WS Motherboard
ASRock - W790 WS Motherboard
ASRock - W790D8H-2T/X550 Motherboard
ASRock - W790D8HM3 Motherboard
ASRock - W790D8UD-1L1N2T/BCM Motherboard
ASRock - WRX90 WS EVO Motherboard
ASUS - EG500-E11-RS2-F Server
ASUS - EG500-E11-RS2-R Server
ASUS - EG500-E11-RS4-F Server
ASUS - EG500-E11-RS4-R Server
ASUS - ESC N8-E11 Server
ASUS - ESC4000-E11 Server
ASUS - ESC8000-E11 Server
ASUS - ESC8000-E11P Server
ASUS - Pro WS TRX50-SAGE WIFI Motherboard
ASUS - Pro WS W790-ACE Motherboard
ASUS - Pro WS W790E-SAGE SE Motherboard
ASUS - Pro WS WRX90E-SAGE SE Motherboard
ASUS - RS700-E11-RS12U Server
ASUS - RS700-E11-RS4U Server
ASUS - RS720-E11-RS12U Server
ASUS - RS720-E11-RS24U Server
ASUS - RS720Q-E11-IM Server
ASUS - RS720Q-E11-RS8U Server
ASUS - RS723Q-E11-RS24 Server
ASUS - Z13PE-D16 Motherboard
Gigabyte - E163-S30 Server (MS33-DC0)
Gigabyte - E263-S30 Server (MS33-DC0)
Gigabyte - E283-S90 Server (MS93-FS0)
Gigabyte - G293-S4x Server (MS43-G20)
Gigabyte - G363-SR0 Server (MS63-HD2)
Gigabyte - G493-SBx Server (MSB3-G40)
Gigabyte - MS03-CE0 Motherboard
Gigabyte - MS33-AR0 Motherboard
Gigabyte - MS33-AR1 Motherboard
Gigabyte - MS73-HB0 Motherboard
Gigabyte - MS73-HB1 Motherboard
Gigabyte - MS73-HB2 Motherboard
Gigabyte - TRX50 AERO D Motherboard
Supermicro - B13DEE Motherboard
Supermicro - B13DET Motherboard
Supermicro - B13SEE-CPU-25G Motherboard
Supermicro - B13SEG Motherboard
Supermicro - Blade SBI-421E-1T3N (B13DET)
Supermicro - Blade SBI-421E-5T3N (B13DET)
Supermicro - Blade SBI-611E-1C2N (B13SEE-CPU-25G)
Supermicro - Blade SBI-611E-1T2N (B13SEE-CPU-25G)
Supermicro - Blade SBI-611E-5T2N (B13SEE-CPU-25G)
Supermicro - Blade SBI-621E-1C3N (B13DEE)
Supermicro - Blade SBI-621E-1T3N (B13DEE)
Supermicro - Blade SBI-621E-5T3N (B13DEE)
Supermicro - CloudDC SuperServer SYS-121C-TN10R (Super X13DDW-A)
Supermicro - CloudDC SuperServer SYS-121C-TN2R (Super X13DDW-A)

https://www.kingston.com/en/memory/search/systemdevices?partid=KSM56R46BS8PMI-16MDI

Memory Voltage : 1.10 V

Form Factor : DIMM

Thickness : 151.6 mil

Memory Speed : 5600 MHz

Width : 1.2"

Memory Standard : DDR5-5600/PC5-44800

Length : 5.3"

Memory Rank : Single-rank

Environmentally Friendly : Yes

Error Checking : ECC

Environmental Certification : Hazard Assessment of Perfluorooctane Sulfonate (PFOS)

Signal Processing : Registered

CAS Latency : CL46

Device Supported : Motherboard

Device Supported : Server

Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Additional Info

SKU	02260KSM56R46BS8PMI16MDI-BF
Weight	1.0000
Is Featured	N/A
Manufacturer	Kingston Technology Company
Manufacturer Part Number	KSM56R46BS8PMI-16MDI
Width	1.2"
Length	5.3"
Height	1
Product ID	02260KSM56R46BS8PMI16MDI
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

Kingston 16GB DDR5 5600MT/s ECC Registered DIMM - For Server, Motherboard - 16 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Single-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty
