Kingston 16GB (1x16GB) DDR5 6400MT/s CL32 FURY Beast Black EXPO - 16 GB (1 x 16GB) - DDR5-6400/PC5-51200 DDR5 SDRAM - 6400 MHz Single-rank Memory - CL32 - 1.40 V - Non-ECC - Unbuffered - 288-pin - DIMM - Lifetime Warranty

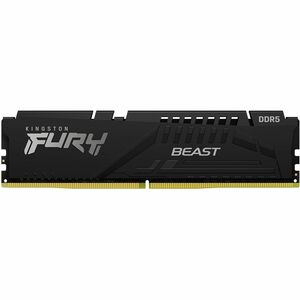

Kingston FURY KF564C32BBE-16 is a 2G x 64-bit (16GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V
• EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V
• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
• XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
• XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37" (34.9mm), w/heatsink
