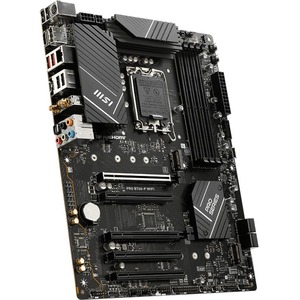

MSI PRO B760-P WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Core, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE

PRO B760-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

Availability: Call or email

Regular Price: $189.99

Special Price $178.59

Regular Price: $189.99

Special Price $178.59

Qty:

Description

Details

MSI PRO B760-P WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Core, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces

OVERVIEW:

Number of SATA Interfaces : 4

Controller Type : Serial ATA/600

Onboard Video : CPU Dependent Video

Chipset Manufacturer : Intel

Bluetooth : Yes

Package Contents :

PRO B760-P WIFI Gaming Desktop Motherboard
European Union Regulatory Notice
Quick Installation Guide
2 x M.2 screw/Standoff Sets
Sata Cable
Wi-fi Antenna
I/O Shield

Number of Memory Slots : 4

Total Number of Expansion Slots : 5

Audio Channels : 7.1

Chipset Model : B760

Form Factor : ATX

Bluetooth Standard : Bluetooth 5.3

Memory Form Factor : UDIMM

Memory Form Factor : DIMM

Total Number of PCI Express Slots : 5

Total Processor Supported : 1

Gigabit Ethernet : Yes

Maximum Memory Supported : 192 GB

Total Number of USB Ports : 7

Processor Socket : Socket LGA-1700

Width : 12"

2.5Gigabit Ethernet : Yes

Memory Speed Supported : 4800 MHz

Memory Speed Supported : 5000 MHz

Memory Speed Supported : 5200 MHz

Memory Speed Supported : 5400 MHz

Memory Speed Supported : 5600 MHz

Memory Speed Supported : 5800 MHz

Memory Speed Supported : 6000 MHz

Memory Speed Supported : 6200 MHz

Memory Speed Supported : 6400 MHz

Memory Speed Supported : 6600 MHz

Memory Speed Supported : 6800 MHz

Number of USB 2.0 Ports : 4

RAID Supported : Yes

Processor Generation Supported : 13th Gen

Processor Generation Supported : 12th Gen

Depth : 9.6"

Number of M.2 Interfaces : 2

RAID Levels : 0

RAID Levels : 5

RAID Levels : 1

RAID Levels : 10

Processor Supported : Celeron

Processor Supported : Core

Processor Supported : Pentium Gold

Wireless LAN : Yes

Memory Technology : DDR5 SDRAM

Number of PCI Express x16 Slots : 5

Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax

Total Number of Onboard USB Ports : 7

Number of Onboard USB 2.0 Ports : 4

Country of Origin : NA

PCI Express Standard : PCI Express 3.0

PCI Express Standard : PCI Express 4.0

Number of USB 3.2 Gen 2 Type-A Ports : 2

Number of USB 3.2 Gen 2 Type-C Ports : 1

S/PDIF : Yes

HDMI : Yes

HDMI Version : 2.1

DisplayPort : Yes

Number of Network (RJ-45) Ports : 1

Additional Info

SKU	02509PROB760PWIFI-BF
Weight	1.0000
Is Featured	N/A
Manufacturer	MSI
Manufacturer Part Number	PROB760PWIFI
Width	12"
Length	1
Height	1
Product ID	02509PROB760PWIFI
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
