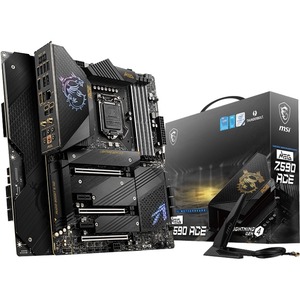

MSI MEG Z590 ACE Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots

PREMIUM
HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.

LIGHTNING GEN 4 M.2

Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

  • - Automatically prioritizes games above other applications -
  • - Allows you to change applications' traffic priority -
  • - Allows you to customize bandwidth for each application -

MEG Z590 ACE

  • Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5600(OC) MHz
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  • Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
  • Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
  • 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
  • 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Availability: Call or email

$505.53
$505.53

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

MSI MEG Z590 ACE Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 6 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 6
  • Controller Type : Serial ATA/600
  • Limited Warranty : 3 Year
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : Intel
  • Bluetooth : Yes
  • Package Contents :
    • MEG Z590 ACE Desktop Motherboard
    • User Manual
    • Quick Installation Guide
    • Wi-Fi Antenna
    • Case Badge
    • USB Drive
    • Cleaning Brush
    • Screwdrivers
    • MEG Stickers
    • Reward Program / Shout Out Flyer
    • Cable Stickers
    • Product Catelog
    • Registration Card
    • M.2 Screw / Standoff Sets
    • DP to Mini DP Cable
    • Thermistor Cable
    • 1 to 2 RGB LED Extension Y Cable
    • CORSAIR RGB LED Extension
    • Rainbow RGB LED Extension Cable
    • 4 x SATA Cables
  • Number of Memory Slots : 4
  • Total Number of Expansion Slots : 5
  • Audio Channels : 7.1
  • Chipset Model : Z590
  • Form Factor : ATX
  • Memory Form Factor : UDIMM
  • Memory Form Factor : DIMM
  • Total Number of PCI Express Slots : 5
  • Total Processor Supported : 1
  • Maximum Memory Supported : 128 GB
  • Number of PCI Express x1 Slots : 2
  • Total Number of USB Ports : 8
  • Processor Socket : Socket LGA-1200
  • Width : 12"
  • 2.5Gigabit Ethernet : Yes
  • Memory Speed Supported : 5600 MHz
  • Memory Speed Supported : 4800 MHz
  • Memory Speed Supported : 4400 MHz
  • Memory Speed Supported : 4000 MHz
  • Memory Speed Supported : 2133 MHz
  • Memory Speed Supported : 2666 MHz
  • Memory Speed Supported : 2933 MHz
  • Memory Speed Supported : 3200 MHz
  • Number of USB 2.0 Ports : 2
  • RAID Supported : Yes
  • Depth : 9.6"
  • Number of M.2 Interfaces : 4
  • RAID Levels : 10
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Core i3
  • Processor Supported : Core i9
  • Processor Supported : Core i7
  • Processor Supported : Core i5
  • Processor Supported : Celeron
  • Processor Supported : Pentium Gold
  • Wireless LAN : Yes
  • Memory Technology : DDR4 SDRAM
  • Number of PCI Express x16 Slots : 3
  • Multi GPU Supported : SLI
  • Multi GPU Supported : CrossFire
  • Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
  • Intel Optane Memory Ready : Yes
  • Total Number of Onboard USB Ports : 7
  • Number of USB 3.2 Gen 1 Ports : 4
  • Number of Onboard USB 2.0 Ports : 4
  • Country of Origin : NA
  • Number of USB 3.2 Gen 2 Type-A Ports : 2
  • Number of Onboard USB 3.2 Ports : 3
  • S/PDIF : Yes
  • HDMI : Yes
  • Number of Network (RJ-45) Ports : 1
  • Additional Info

    Additional Info

    SKU 02509Z590ACE-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer MSI
    Manufacturer Part Number Z590ACE
    Width 12"
    Length 1
    Height 1
    Product ID 02509Z590ACE
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
