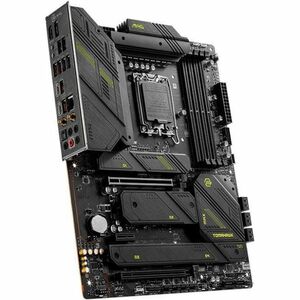

MSI MAG MAG Z790 TOMAHAWK MAX WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Celeron, Core Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit E

MAG Z790 TOMAHAWK MAX WIFI is designed for gamers, providing a stable, solid, and durable foundation for their PC builds. Coming up with Wi-Fi 7 solution, 2.5G LAN, DDR5, PCIe 5.0 solutions, and exclusive M.2 Shield Frozr, it's ready for Intel® next Gen and 13th Gen Core processors.

The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

TOOL-FREE M.2 INSTALLATION

Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.

Extended Heatsink
  • Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
  • Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
  • The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad
  • High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.


Availability: Call or email

$310.31
$310.31

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

MSI MAG MAG Z790 TOMAHAWK MAX WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Celeron, Core Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 8 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 8
  • Controller Type : Serial ATA/600
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : Intel
  • Bluetooth : Yes
  • Package Contents :
    • MAG Z790 TOMAHAWK MAX WIFI Gaming Desktop Motherboard
    • Quick Installation Guide
    • European Union Regulatory Notice
    • 2 x Sata Cables
    • EZ m.2 Clips
    • USB Drive
    • cable sticker
    • wi-fi antenna
    • front panel connector
  • Number of Memory Slots : 4
  • Total Number of Expansion Slots : 3
  • Audio Channels : 7.1
  • Chipset Model : Z790
  • Form Factor : ATX
  • Bluetooth Standard : Bluetooth 5.4
  • Memory Form Factor : DIMM
  • Memory Form Factor : UDIMM
  • Total Number of PCI Express Slots : 3
  • Total Processor Supported : 1
  • Gigabit Ethernet : Yes
  • Maximum Memory Supported : 192 GB
  • Number of PCI Express x1 Slots : 1
  • Total Number of USB Ports : 10
  • Processor Socket : Socket LGA-1700
  • Width : 12"
  • 2.5Gigabit Ethernet : Yes
  • Memory Speed Supported : 7400 MHz
  • Memory Speed Supported : 7600 MHz
  • Memory Speed Supported : 7800 MHz
  • Memory Speed Supported : 4800 MHz
  • Memory Speed Supported : 5000 MHz
  • Memory Speed Supported : 5200 MHz
  • Memory Speed Supported : 5400 MHz
  • Memory Speed Supported : 5600 MHz
  • Memory Speed Supported : 5800 MHz
  • Memory Speed Supported : 6000 MHz
  • Memory Speed Supported : 6200 MHz
  • Memory Speed Supported : 6400 MHz
  • Memory Speed Supported : 6600 MHz
  • Memory Speed Supported : 6800 MHz
  • Memory Speed Supported : 7000 MHz
  • Memory Speed Supported : 7200 MHz
  • RAID Supported : Yes
  • Processor Generation Supported : 12th Gen
  • Processor Generation Supported : 13th Gen
  • Depth : 9.6"
  • Number of M.2 Interfaces : 4
  • RAID Levels : 10
  • RAID Levels : 5
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Core
  • Processor Supported : Celeron
  • Processor Supported : Pentium Gold
  • Wireless LAN : Yes
  • Memory Technology : DDR5 SDRAM
  • Number of PCI Express x16 Slots : 2
  • Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
  • Total Number of Onboard USB Ports : 7
  • Number of Onboard USB 2.0 Ports : 4
  • PCI Express Standard : PCI Express 3.0
  • PCI Express Standard : PCI Express 4.0
  • PCI Express Standard : PCI Express 5.0
  • Number of USB 3.2 Gen 1 Type-A Ports : 4
  • Number of USB 3.2 Gen 2 Type-A Ports : 4
  • Number of USB 3.2 Gen 2 Type-C Ports : 1
  • HDMI : Yes
  • HDMI Version : 2.1
  • DisplayPort : Yes
  • Number of Network (RJ-45) Ports : 1
  • Additional Info

    Additional Info

    SKU 02509Z790TOMMAXWI-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer MSI
    Manufacturer Part Number Z790TOMMAXWI
    Width 12"
    Length 1
    Height 1
    Product ID 02509Z790TOMMAXWI
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
