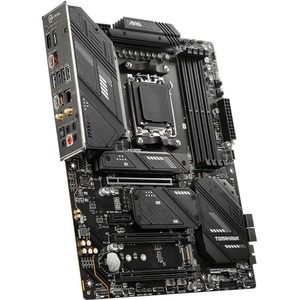

MSI MAG MAG X670E TOMAHAWK WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX - Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.

M.2 Shield Frozr

Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional
Choke Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Availability: Call or email

$294.59

Qty:

Description

Details

MSI MAG MAG X670E TOMAHAWK WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX - Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces

OVERVIEW:

Number of SATA Interfaces : 4

Controller Type : Serial ATA/600

Onboard Video : CPU Dependent Video

Chipset Manufacturer : AMD

Bluetooth : Yes

Package Contents :

MAG X670E TOMAHAWK WIFI Gaming Desktop Motherboard
Quick Installation Guide
European Union Regulatory Notice
2 x Sata cables
3 x M.2 clip
Cable Stickers
Wi-fi Antenna
M.2 Plate Screw

Number of Memory Slots : 4

Total Number of Expansion Slots : 3

Audio Channels : 7.1

Chipset Model : X670

Form Factor : ATX

Bluetooth Standard : Bluetooth 5.3

Memory Form Factor : DIMM

Memory Form Factor : UDIMM

Total Number of PCI Express Slots : 3

Total Processor Supported : 1

Gigabit Ethernet : Yes

Maximum Memory Supported : 128 GB

Total Number of USB Ports : 8

Processor Socket : Socket AM5

Width : 12"

2.5Gigabit Ethernet : Yes

Memory Speed Supported : 4000 MHz

Memory Speed Supported : 4800 MHz

Memory Speed Supported : 5000 MHz

Memory Speed Supported : 5200 MHz

Memory Speed Supported : 5400 MHz

Memory Speed Supported : 5600 MHz

Memory Speed Supported : 5800 MHz

Memory Speed Supported : 6000 MHz

Memory Speed Supported : 6200 MHz

Memory Speed Supported : 6400 MHz

Memory Speed Supported : 6600 MHz

RAID Supported : Yes

Depth : 9.6"

10Gigabit Ethernet : Yes

Number of M.2 Interfaces : 4

RAID Levels : 10

RAID Levels : 1

RAID Levels : 0

Processor Supported : Ryzen 7

Wireless LAN : Yes

Memory Technology : DDR5 SDRAM

Number of PCI Express x16 Slots : 3

Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax

Total Number of Onboard USB Ports : 9

Number of Onboard USB 2.0 Ports : 4

PCI Express Standard : PCI Express 3.0

PCI Express Standard : PCI Express 5.0

PCI Express Standard : PCI Express 4.0

Number of USB 3.2 Gen 1 Type-A Ports : 4

Number of USB 3.2 Gen 2 Type-A Ports : 2

Number of USB 3.2 Gen 2 Type-C Ports : 1

Number of Onboard USB 3.2 Ports : 6

S/PDIF : Yes

HDMI : Yes

HDMI Version : 2.1

DisplayPort : Yes

Number of Network (RJ-45) Ports : 1

Additional Info

SKU	02509X670ETMAHAWIFI-BF
Weight	1.0000
Is Featured	N/A
Manufacturer	MSI
Manufacturer Part Number	X670ETMAHAWIFI
Width	12"
Length	1
Height	1
Product ID	02509X670ETMAHAWIFI
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
