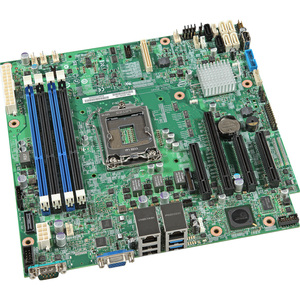

Intel S1200V3RPL Server Motherboard - Intel C224 Chipset - Socket H3 LGA-1150 - Micro ATX - 32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Intel® Server Board S1200V3RP Family

Cost-effective single-socket server boards with small uATX form factor for small and medium businesses

The Intel® Server Board S1200V3RP family is a cost-effective, one-socket Intel® Xeon® processor E3 v3 product family solution that has simple setup and deployment while offering a solid upgrade path, making it an ideal first server for small and medium businesses.

Availability: Call or email

Regular Price: $279.51

Special Price $262.74

Regular Price: $279.51

Special Price $262.74

Qty:

Description

Details

Intel S1200V3RPL Server Motherboard - Intel C224 Chipset - Socket H3 LGA-1150 - Micro ATX - 32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

OVERVIEW:

Number of SATA Interfaces : 6

Controller Type : Serial ATA

Limited Warranty : 3 Year

Onboard Video : On-board Video Chipset

Chipset Manufacturer : Intel

Number of Memory Slots : 4

Total Number of Expansion Slots : 4

Chipset Model : C224

Form Factor : Micro ATX

Compatibility : 4U pedestal:

P4308RPLSHDR

Memory Form Factor : UDIMM

Memory Form Factor : DIMM

Total Number of PCI Express Slots : 4

Total Processor Supported : 1

Height : 5.2"

Gigabit Ethernet : Yes

Maximum Memory Supported : 32 GB

Number of PCI Express x1 Slots : 1

Total Number of USB Ports : 4

Processor Socket : Socket H3 LGA-1150

Width : 9.6"

Memory Speed Supported : 1333 MHz

Memory Speed Supported : 1600 MHz

Number of PCI Express x4 Slots : 1

RAID Supported : Yes

Depth : 9.6"

Memory Standard : DDR3-1333/PC3-10600

Memory Standard : DDR3-1600/PC3-12800

Number of PCI Express x8 Slots : 1

RAID Levels : 1+0

RAID Levels : 5

RAID Levels : 1

RAID Levels : 0

Processor Supported : Xeon

Weight (Approximate) : 3.20 lb

Memory Technology : DDR3 SDRAM

Number of PCI Express x16 Slots : 1

Total Number of Onboard USB Ports : 6

PCI Express Standard : PCI Express 2.0

PCI Express Standard : PCI Express 3.0

VGA : Yes

Number of Network (RJ-45) Ports : 2

Additional Info

SKU	02160DBS1200V3RPL-BF
Weight	3.2000
Is Featured	N/A
Manufacturer	Intel Corporation
Manufacturer Part Number	DBS1200V3RPL
Width	9.6"
Length	1
Height	5.2"
Product ID	02160DBS1200V3RPL
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

Intel S1200V3RPL Server Motherboard - Intel C224 Chipset - Socket H3 LGA-1150 - Micro ATX - 32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
