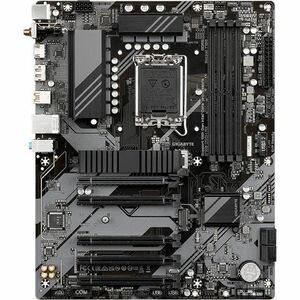

Gigabyte Ultra Durable B760 DS3H AX Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11

8+2+1 Phases Hybrid Digital VRM Design

8+2+1 Phases Low RDS(on) MOSFETs

Premium Choke and Capacitors to improve transient response and minimize oscillation

PCIe 4.0 Design

GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

DDR5 Overclocking Up to 7600 and Beyond

GIGABYTE is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard

GIGABYTE PerfDrive

PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.

SMART FAN 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

  • High Current Support
  • Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
  • Precision Control
  • Multiple temperature/fan speed control points for precise fan curve
  • Dual Curve Mode
  • Slope/Stair dual mode for different user scenario
  • Fan Stop
  • Fan can stop completely below users' specified temperature point

CONNECTIVITY

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

802.11ax Wi-Fi 6E

Latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission

Benefit of Wi-Fi 6E

  • Dedicated spectrum in 6GHz band for less interference
  • 5.5X throughput than 802.11ac 1x1
  • 4X better network capacity, no traffic jams especially in those dense area with lots of devices
  • Network efficiency increase for better user experience

Availability: Call or email

$159.99
$159.99
GIGABYTE Technology, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Gigabyte Ultra Durable B760 DS3H AX Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 4
  • Controller Type : Serial ATA/600
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : Intel
  • Bluetooth : Yes
  • Number of Memory Slots : 4
  • Total Number of Expansion Slots : 5
  • Audio Channels : 7.1
  • Chipset Model : B760
  • Form Factor : ATX
  • Bluetooth Standard : Bluetooth 5.3
  • Memory Form Factor : UDIMM
  • Memory Form Factor : DIMM
  • Total Number of PCI Express Slots : 5
  • Graphics Controller Model : HD Graphics
  • Total Processor Supported : 1
  • Gigabit Ethernet : Yes
  • Maximum Memory Supported : 192 GB
  • Total Number of USB Ports : 6
  • Processor Socket : Socket LGA-1700
  • Width : 12"
  • Environmentally Friendly : Yes
  • Memory Speed Supported : 4000 MHz
  • Memory Speed Supported : 4800 MHz
  • Memory Speed Supported : 5200 MHz
  • Memory Speed Supported : 5400 MHz
  • Memory Speed Supported : 5600 MHz
  • Memory Speed Supported : 5800 MHz
  • Memory Speed Supported : 6000 MHz
  • Memory Speed Supported : 6200 MHz
  • Memory Speed Supported : 6400 MHz
  • Memory Speed Supported : 6600 MHz
  • Memory Speed Supported : 6800 MHz
  • Memory Speed Supported : 7000 MHz
  • Memory Speed Supported : 7200 MHz
  • Memory Speed Supported : 7400 MHz
  • Memory Speed Supported : 7600 MHz
  • Number of USB 2.0 Ports : 4
  • RAID Supported : Yes
  • Processor Generation Supported : 12th Gen
  • Processor Generation Supported : 13th Gen
  • Processor Generation Supported : 14th Gen
  • Depth : 9.6"
  • Number of M.2 Interfaces : 2
  • RAID Levels : 10
  • RAID Levels : 5
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Celeron
  • Processor Supported : Pentium Gold
  • Processor Supported : Core
  • Wireless LAN : Yes
  • Memory Technology : DDR5 SDRAM
  • Number of PCI Express x16 Slots : 5
  • Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
  • Energy Efficiency Compliance : Energy-related Products Directive Ready (ErP Ready)
  • Total Number of Onboard USB Ports : 7
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  • Environmental Compliance : China Restriction of Hazardous Substances (China RoHS)
  • Number of Onboard USB 2.0 Ports : 4
  • PCI Express Standard : PCI Express 3.0
  • PCI Express Standard : PCI Express 4.0
  • Number of USB 3.2 Gen 2 Type-A Ports : 1
  • S/PDIF : Yes
  • HDMI : Yes
  • HDMI Version : 2.1
  • DisplayPort : Yes
  • Number of Network (RJ-45) Ports : 1
  • Additional Info

    Additional Info

    SKU 01964B760DS3HAX-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer GIGABYTE Technology, Inc
    Manufacturer Part Number B760 DS3H AX
    Width 12"
    Length 1
    Height 1
    Product ID 01964B760DS3HAX
