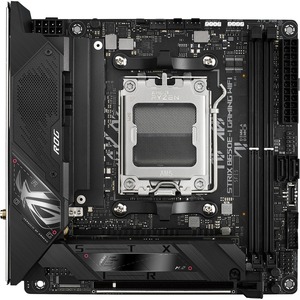

Asus ROG Strix B650E-I GAMING WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Mini ITX - Ryzen 7 Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DDR5-6400/PC5-51200 - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Et

ROG STRIX B650E-I GAMING WIFI

Don't be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5, it's a perfect partner for Ryzen 7000, particularly in stealthy SFF builds.

DIY-FRIENDLY FEATURES | M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

BIOS FLASHBACK BUTTON

BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

FLEXKEY BUTTON

At its default, FlexKey functions as a system reset button, but it can also be easily reassigned to quickly activate Safe Boot or enter the BIOS.

Q-LED

Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

ALL-ROUND PERFORMANCE

To keep up with the big boys, the ROG Strix B650E-I comes stacked with a beefy power solution and a quiet thermal array, giving it a nice share of headroom to push for faster frequencies. But the speed doesn't stop there: memory, graphics cards, and storage can all be cranked to the max thanks to DDR5 and PCIe 5.0 support.

PCIE 5.0

Fully embracing the new standard, the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0, allowing for blistering 16 GB/s read and write speeds, while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface.

DYNAMIC OC SWITCHER

Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher automatically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance.

Availability: Call or email

$357.25
$357.25
ASUS Computer International

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Asus ROG Strix B650E-I GAMING WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Mini ITX - Ryzen 7 Processor Supported - 64 GB DDR5 SDRAM Maximum RAM - DDR5-6400/PC5-51200 - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 2 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 2
  • Controller Type : Serial ATA/600
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : AMD
  • Bluetooth : Yes
  • Number of Memory Slots : 2
  • Total Number of Expansion Slots : 1
  • Audio Channels : 7.1
  • Chipset Model : B650
  • Form Factor : Mini ITX
  • Bluetooth Standard : Bluetooth 5.2
  • Memory Form Factor : UDIMM
  • Memory Form Factor : DIMM
  • Total Number of PCI Express Slots : 1
  • Total Processor Supported : 1
  • Gigabit Ethernet : Yes
  • Maximum Memory Supported : 64 GB
  • Total Number of USB Ports : 8
  • Processor Socket : Socket AM5
  • Width : 6.7"
  • 2.5Gigabit Ethernet : Yes
  • Memory Speed Supported : 4800 MHz
  • Memory Speed Supported : 5400 MHz
  • Memory Speed Supported : 5600 MHz
  • Memory Speed Supported : 5800 MHz
  • Memory Speed Supported : 6000 MHz
  • Memory Speed Supported : 6200 MHz
  • Memory Speed Supported : 6400 MHz
  • RAID Supported : Yes
  • Depth : 6.7"
  • Memory Standard : DDR5-6400/PC5-51200
  • Number of M.2 Interfaces : 2
  • RAID Levels : 10
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Ryzen 7
  • Wireless LAN : Yes
  • Memory Technology : DDR5 SDRAM
  • Number of PCI Express x16 Slots : 1
  • Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
  • Total Number of Onboard USB Ports : 5
  • Number of Onboard USB 2.0 Ports : 2
  • PCI Express Standard : PCI Express 5.0
  • Number of USB 3.2 Gen 2 Type-A Ports : 4
  • Number of USB 3.2 Gen 2 Type-C Ports : 1
  • VGA : Yes
  • HDMI : Yes
  • HDMI Version : 2.1
  • Number of Network (RJ-45) Ports : 1
  • Additional Info

    Additional Info

    SKU 01196ROGSTRIXB650EIGAMING-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer ASUS Computer International
    Manufacturer Part Number ROG STRIX B650E-I GAMING WIFI
    Width 6.7"
    Length 1
    Height 1
    Product ID 01196ROGSTRIXB650EIGAMING
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
