AMD Ryzen Embedded R1000-Series R1505 Mini-ITX motherboard, two SO-DIMM slots, three DisplayPort (option upon request), one M.2 slot, two SATA port (option upon request) PCIe x8
- Supports AMD Ryzen Embedded R1000-Series R1505
- Two SO-DIMM slots support up to 32GB DDR4 2400 MHz SDRAM
- Lockable DC-in connector supported
- Supports Three display configurations with multiple interfaces, including 2 DisplayPort and 1 LVDS (factory default), 3 DisplayPort (option upon request), 2 DisplayPort and 1 eDP (option upon request)
- Advanced I/O and connectivity features: CCtalk & CFAST supported
- Seven years of longevity with extended product life cycles
- Wide temperature range endurance: 0~60°C

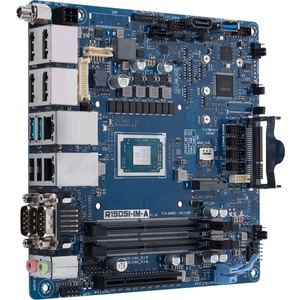

ASUS R1505I-IM-A is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x8 slot, one M.2 socket (B key) and lockable DC-in connector. ASUS R1505I-IM-A is an ideal choice for a wide range of embedded applications. As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets.
ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
