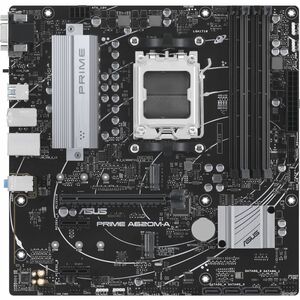

Asus Prime PRIME A620M-A-CSM Desktop Motherboard - AMD A620 Chipset - Socket AM5 - Micro ATX - Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Availability: Call or email

$157.19
$157.19
ASUS Computer International

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Asus Prime PRIME A620M-A-CSM Desktop Motherboard - AMD A620 Chipset - Socket AM5 - Micro ATX - Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 4
  • Controller Type : Serial ATA/600
  • Limited Warranty : 3 Year
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : AMD
  • Package Contents :
    • PRIME A620M-A-CSM Notebook Motherboard
    • 2 x SATA 6Gb/s cables
    • 1 x I/O Shield
    • 1 x Screw package for M.2 SSD
    • 1 x ACC Express Activation Key Card
    • 1 x User guide
  • Number of Memory Slots : 4
  • Total Number of Expansion Slots : 32
  • Audio Channels : 7.1
  • Chipset Model : A620
  • Form Factor : Micro ATX
  • Memory Form Factor : UDIMM
  • Memory Form Factor : DIMM
  • Total Number of PCI Express Slots : 3
  • Total Processor Supported : 1
  • Gigabit Ethernet : Yes
  • Maximum Memory Supported : 128 GB
  • Number of PCI Express x1 Slots : 2
  • Total Number of USB Ports : 6
  • Processor Socket : Socket AM5
  • Width : 9.6"
  • Environmentally Friendly : Yes
  • Memory Speed Supported : 5000 MHz
  • Memory Speed Supported : 5200 MHz
  • Memory Speed Supported : 5400 MHz
  • Memory Speed Supported : 5600 MHz
  • Memory Speed Supported : 5800 MHz
  • Memory Speed Supported : 6000 MHz
  • Memory Speed Supported : 6200 MHz
  • Memory Speed Supported : 6400 MHz
  • RAID Supported : Yes
  • Depth : 9.6"
  • Number of M.2 Interfaces : 2
  • RAID Levels : 10
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Ryzen 7
  • Memory Technology : DDR5 SDRAM
  • Number of PCI Express x16 Slots : 1
  • Total Number of Onboard USB Ports : 7
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of Onboard USB 2.0 Ports : 4
  • PCI Express Standard : PCI Express 3.0
  • PCI Express Standard : PCI Express 4.0
  • Number of USB 3.2 Gen 1 Type-A Ports : 2
  • S/PDIF : Yes
  • VGA : Yes
  • HDMI : Yes
  • HDMI Version : 2.1
  • DisplayPort : Yes
  • Number of Network (RJ-45) Ports : 1
  • Additional Info

    Additional Info

    SKU 01196PRIMEA620MACSM-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer ASUS Computer International
    Manufacturer Part Number PRIME A620M-A-CSM
    Width 9.6"
    Length 1
    Height 1
    Product ID 01196PRIMEA620MACSM
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
