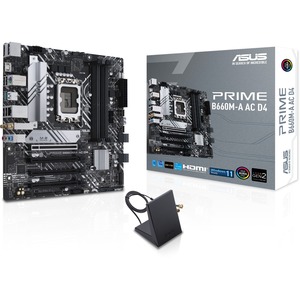

Asus Prime B660M-A AC D4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethern

Asus Prime B660M-A AC D4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 6 x SATA Interfaces

Availability: Call or email

Regular Price: $186.35

Special Price $175.17

Regular Price: $186.35

Special Price $175.17

Qty:

Description

Details

OVERVIEW:

Number of SATA Interfaces : 6

Controller Type : Serial ATA/600

Limited Warranty : 3 Year

Onboard Video : CPU Dependent Video

Chipset Manufacturer : Intel

Bluetooth : Yes

Package Contents :

Prime B660M-A AC D4 Desktop Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi Moving Antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x Support DVD
1 x User Guide

Number of Memory Slots : 4

Total Number of Expansion Slots : 4

Audio Channels : 7.1

Chipset Model : B660

Form Factor : Micro ATX

Memory Form Factor : UDIMM

Memory Form Factor : DIMM

Total Number of PCI Express Slots : 4

Intel RST : Yes

Total Processor Supported : 1

Gigabit Ethernet : Yes

Maximum Memory Supported : 128 GB

Total Number of USB Ports : 6

Processor Socket : Socket LGA-1700

Width : 9.6"

Environmentally Friendly : Yes

Memory Speed Supported : 2133 MHz

Memory Speed Supported : 2400 MHz

Memory Speed Supported : 2666 MHz

Memory Speed Supported : 2800 MHz

Memory Speed Supported : 2933 MHz

Memory Speed Supported : 3000 MHz

Memory Speed Supported : 3200 MHz

Memory Speed Supported : 3333 MHz

Memory Speed Supported : 3400 MHz

Memory Speed Supported : 3466 MHz

Memory Speed Supported : 3600 MHz

Memory Speed Supported : 3733 MHz

Memory Speed Supported : 4000 MHz

Memory Speed Supported : 4266 MHz

Memory Speed Supported : 4400 MHz

Memory Speed Supported : 4600 MHz

Memory Speed Supported : 4800 MHz

Memory Speed Supported : 5000 MHz

Memory Speed Supported : 5333 MHz

Number of USB 2.0 Ports : 4

RAID Supported : Yes

Processor Generation Supported : 12th Gen

Depth : 9.6"

Number of M.2 Interfaces : 2

RAID Levels : 10

RAID Levels : 5

RAID Levels : 1

RAID Levels : 0

Processor Supported : Core

Processor Supported : Celeron

Processor Supported : Pentium Gold

Wireless LAN : Yes

Memory Technology : DDR4 SDRAM

Number of PCI Express x16 Slots : 4

Wireless LAN Standard : IEEE 802.11a/b/g/n/ac

Intel Optane Memory Ready : Yes

Total Number of Onboard USB Ports : 10

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Number of Onboard USB 2.0 Ports : 4

Number of USB 3.2 Gen 2 Type-A Ports : 2

Number of Onboard USB 3.2 Ports : 6

HDMI : Yes

DisplayPort : Yes

Number of Network (RJ-45) Ports : 1

Additional Info

SKU	01196PRIMEB660MAACD4-BF
Weight	1.0000
Is Featured	N/A
Manufacturer	ASUS Computer International
Manufacturer Part Number	PRIME B660M-A AC D4
Width	9.6"
Length	1
Height	1
Product ID	01196PRIMEB660MAACD4
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
