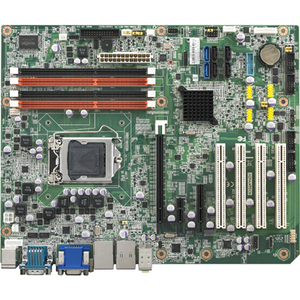

Advantech AIMB-782 Desktop Motherboard - Intel Q77 Express Chipset - 32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces Zoom

Advantech AIMB-782 Desktop Motherboard - Intel Q77 Express Chipset - 32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

  • 3rd generation Intel® Core™ processor-based platform
  • Supports Intel 3rd generation Core i7/i5/i3/Pentium processor with Q77 chipset
  • Four DIMM sockets support up to 32 GB DDR3 1333/1600
  • Supports dual display VGA/DVI-D and dual GbE LAN
  • Supports SATA RAID 0, 1, 5, 10, AMT8.0, USB 3.0
  • Supports Advantech LPC modules of TPM

Availability: Call or email

$447.89
$447.89

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Advantech AIMB-782 Desktop Motherboard - Intel Q77 Express Chipset - 32 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 6
  • Controller Type : Serial ATA/300
  • Controller Type : Serial ATA/600
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : Intel
  • Number of Memory Slots : 4
  • Total Number of Expansion Slots : 8
  • Chipset Model : Q77 Express
  • Memory Form Factor : DIMM
  • Memory Form Factor : UDIMM
  • Total Number of PCI Express Slots : 3
  • Total Processor Supported : 1
  • Gigabit Ethernet : Yes
  • Maximum Memory Supported : 32 GB
  • Number of PCI Express x1 Slots : 1
  • Total Number of USB Ports : 4
  • Width : 9.6"
  • Memory Speed Supported : 1333 MHz
  • Memory Speed Supported : 1600 MHz
  • Number of PCI Express x4 Slots : 1
  • Number of USB 2.0 Ports : 2
  • Integrated Processor Cache : 8 MB
  • RAID Supported : Yes
  • Depth : 12"
  • Memory Standard : DDR3-1333/PC3-10600
  • Memory Standard : DDR3-1600/PC3-12800
  • Number of USB 3.0 Ports : 2
  • RAID Levels : 1+0
  • RAID Levels : 5
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Core i3
  • Processor Supported : Core i5
  • Processor Supported : Core i7
  • Memory Technology : DDR3 SDRAM
  • Number of PCI Express x16 Slots : 1
  • Total Number of Onboard USB Ports : 8
  • Number of Onboard USB 2.0 Ports : 6
  • Number of Onboard USB 3.0 Ports : 2
  • Onboard S/PDIF Header : Yes
  • VGA : Yes
  • DVI : Yes
  • Number of Network (RJ-45) Ports : 2

    • Additional Info

    Additional Info

    SKU 01074AIMB782QG200A1E-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number AIMB782QG200A1E
    Width 9.6"
    Length 1
    Height 1
    Product ID 01074AIMB782QG200A1E
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
