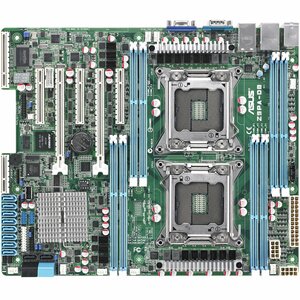

Asus Z9PA-D8 Server Motherboard - Intel C602-A Chipset - Socket R LGA-2011 - ATX - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, RDIMM, UDIMM, LRDIMM - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA I

Most Powerful Dual LGA2011 Serverboard in 12"x10" Compact Size

ASUS proudly to announce new server board Z9PA-D8 based on Intel® E5-2600 + C602 PCH platform. The board integrates versatile features into a compact 12"x10" size which allows this board to fit into ATX chassis. Through innovative and top-notch engineering design, this board is able to support dual Intel® Xeon® E5-2600 processors up to 135W CPU. With adequately developed thermal solution in 1U rack mount, the system may support up to 115W CPU.

Availability: Call or email

$395.90

Qty:

Description

Details

Asus Z9PA-D8 Server Motherboard - Intel C602-A Chipset - Socket R LGA-2011 - ATX - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, RDIMM, UDIMM, LRDIMM - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

OVERVIEW:

Number of SATA Interfaces : 6

Controller Type : Serial ATA/300

Controller Type : Serial ATA/600

Onboard Video : On-board Video Chipset

Chipset Manufacturer : Intel

Package Contents :

Z9PA-D8 Server Motherboard
ASMB6-IKVM Remote Server Management
6 x SATA Data Cables
1 x I/O Shield
1 x Support CD
1 x User's Guide
1 x USB to SATA DOM Power Cable

Number of Memory Slots : 8

Total Number of Expansion Slots : 6

Chipset Model : C602-A

Form Factor : ATX

Memory Form Factor : LRDIMM

Memory Form Factor : UDIMM

Memory Form Factor : RDIMM

Memory Form Factor : DIMM

Total Number of PCI Express Slots : 6

Graphics Controller Model : AST2300

Total Processor Supported : 2

Gigabit Ethernet : Yes

Maximum Memory Supported : 256 GB

Total Number of USB Ports : 4

Processor Socket : Socket R LGA-2011

Width : 12"

Environmentally Friendly : Yes

Memory Speed Supported : 1066 MHz

Memory Speed Supported : 1333 MHz

Memory Speed Supported : 1600 MHz

Number of USB 2.0 Ports : 2

RAID Supported : Yes

Depth : 10"

Memory Standard : DDR3-1066/PC3-8500

Memory Standard : DDR3-1333/PC3-10600

Memory Standard : DDR3-1600/PC3-12800

Number of PCI Express x8 Slots : 3

Number of USB 3.0 Ports : 2

RAID Levels : 1+0

RAID Levels : 5

RAID Levels : 1

RAID Levels : 0

Processor Supported : Xeon

Memory Technology : DDR3 SDRAM

Number of PCI Express x16 Slots : 2

Total Number of Onboard USB Ports : 5

Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

PCI Express Standard : PCI Express 3.0

PCI Express Standard : PCI Express 2.0

VGA : Yes

Number of Network (RJ-45) Ports : 3

Additional Info

SKU	01196Z9PAD8(ASMB6IKVM)-BF
Weight	1.0000
Is Featured	N/A
Manufacturer	ASUS Computer International
Manufacturer Part Number	Z9PA-D8(ASMB6-IKVM)
Width	12"
Length	1
Height	1
Product ID	01196Z9PAD8(ASMB6IKVM)
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

Asus Z9PA-D8 Server Motherboard - Intel C602-A Chipset - Socket R LGA-2011 - ATX - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, RDIMM, UDIMM, LRDIMM - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA I
