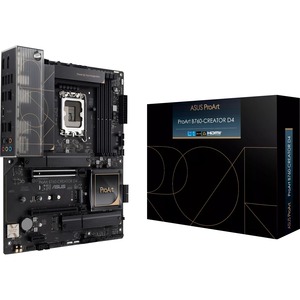

Asus ProArt B760-CREATOR D4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI

ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector and a ThunderboltTM 4 header.

Comprehensive Connectivity | PCIe 5.0 for graphics cards

The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.

Front USB3.2 Gen 2x2 Type-C®

A full complement of USB ports, including a front-panel USB 3.2 Gen 2x2 Type-C® connector that provides data transfer speeds of up to 20 Gbps, supports high-end rigs loaded with peripherals.

Thunderbolt™ / USB4® support

The ProArt B760-Creator D4 features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.

Dual Ethernet

2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.

M.2 Slot (Key E)

The ProArt B760-Creator D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules

PCIe 4.0 M.2 Storage

The ProArt B760-Creator D4 features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.

Robust power design | 12+1 teamed power stages

Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands of the latest 13th & 12th Gen Intel Core processors.

Chokes & capacitors

Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Availability: Call or email

$248.80
$248.80
ASUS Computer International

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Asus ProArt B760-CREATOR D4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 4
  • Controller Type : Serial ATA/600
  • Limited Warranty : 3 Year
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : Intel
  • Package Contents :
    • ProArt B760-CREATOR D4 Desktop Motherboard
    • 2 x SATA 6Gb/s cables
    • 2 x M.2 Rubber packages
    • 1 x Screw package for M.2 Key E
    • 1 x ProArt ruler
    • 1 x Q-connector
    • 1 x ACC Express Activation Key Card
    • 1 x User guide
  • Number of Memory Slots : 4
  • Total Number of Expansion Slots : 3
  • Audio Channels : 7.1
  • Chipset Model : B760
  • Form Factor : ATX
  • Memory Form Factor : UDIMM
  • Memory Form Factor : DIMM
  • Total Number of PCI Express Slots : 3
  • Total Processor Supported : 1
  • Gigabit Ethernet : Yes
  • Maximum Memory Supported : 128 GB
  • Number of PCI Express x1 Slots : 1
  • Total Number of USB Ports : 9
  • Processor Socket : Socket LGA-1700
  • Width : 12"
  • 2.5Gigabit Ethernet : Yes
  • RAID Supported : Yes
  • Processor Generation Supported : 12th Gen
  • Processor Generation Supported : 13th Gen
  • Depth : 9.6"
  • Number of M.2 Interfaces : 3
  • RAID Levels : 10
  • RAID Levels : 5
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Celeron
  • Processor Supported : Pentium Gold
  • Processor Supported : Core
  • Memory Technology : DDR4 SDRAM
  • Number of PCI Express x16 Slots : 2
  • Total Number of Onboard USB Ports : 7
  • Number of Onboard USB 2.0 Ports : 4
  • PCI Express Standard : PCI Express 3.0
  • PCI Express Standard : PCI Express 4.0
  • PCI Express Standard : PCI Express 5.0
  • Number of USB 3.2 Gen 1 Type-A Ports : 4
  • Number of USB 3.2 Gen 2 Type-C Ports : 1
  • S/PDIF : Yes
  • HDMI : Yes
  • HDMI Version : 2.1
  • DisplayPort : Yes
  • Number of Network (RJ-45) Ports : 2
  • Thunderbolt : Yes
  • Number of Thunderbolt 4 Ports : 1
  • Additional Info

    Additional Info

    SKU 01196PROARTB760CREATORD4-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer ASUS Computer International
    Manufacturer Part Number PROARTB760-CREATORD4
    Width 12"
    Length 1
    Height 1
    Product ID 01196PROARTB760CREATORD4
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
