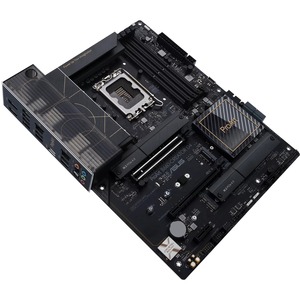

Asus ProArt B660-CREATOR D4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i9, Core i3, Core i7 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Me

Intel® B660 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR4, 2.5 Gb and 1 Gb Ethernet, three PCIe 4.0 M.2 slots, plus USB-C DisplayPort™ and a USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+

  • Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
  • Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
  • Next-gen performance: 12+1 power stages rated for 50 amps, PCIe® 5.0 ready
  • Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
  • ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
  • Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express

Your Powerhouse for Creativity

ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

Comprehensive Connectivity

An array of powerful I/O ports - including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots - enables quick data transfers and extensive storage options.

USB-C DisplayPort (DP Alt Mode)

This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.

USB 3.2 Gen 2x2 Type-C® Front-Panel Connector with Quick Charge 4+

A USB 3.2 Gen 2x2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

Next-Gen Performance

With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that's rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.

  • Teamed power stages

    12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.

  • Digi+ Power Control

    The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

  • ProCool power connector

    The ASUS ProCool socket is built to exacting specifications to ensure flush contact with PSU power lines, enabling lower impedance and better heat dissipation.

  • Chokes & capacitors

    Premium alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Availability: Call or email

$263.63
$263.63
ASUS Computer International

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Asus ProArt B660-CREATOR D4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i9, Core i3, Core i7 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 4
  • Controller Type : Serial ATA/600
  • Limited Warranty : 3 Year
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : Intel
  • Package Contents :
    • ProArt B660-CREATOR D4 Desktop Motherboard
    • 1 x DisplayPort cable
    • 2 x SATA 6Gb/s cables
    • 3 x M.2 Rubber Packages
    • 1 x Q-connector
    • 1 x Support DVD
    • 1 x ACC Express Activation Key Card
    • 1 x User Guide
  • Number of Memory Slots : 4
  • Total Number of Expansion Slots : 3
  • Audio Channels : 7.1
  • Chipset Model : B660
  • Form Factor : ATX
  • Memory Form Factor : UDIMM
  • Memory Form Factor : DIMM
  • Total Number of PCI Express Slots : 3
  • Intel RST : Yes
  • Total Processor Supported : 1
  • Gigabit Ethernet : Yes
  • Maximum Memory Supported : 128 GB
  • Number of PCI Express x1 Slots : 1
  • Total Number of USB Ports : 9
  • Processor Socket : Socket LGA-1700
  • Width : 12"
  • 2.5Gigabit Ethernet : Yes
  • Environmentally Friendly : Yes
  • Memory Speed Supported : 2133 MHz
  • Memory Speed Supported : 2666 MHz
  • Memory Speed Supported : 2933 MHz
  • Memory Speed Supported : 3200 MHz
  • Memory Speed Supported : 3333 MHz
  • Memory Speed Supported : 3400 MHz
  • Memory Speed Supported : 3600 MHz
  • Memory Speed Supported : 3866 MHz
  • Memory Speed Supported : 3733 MHz
  • Memory Speed Supported : 5000 MHz
  • Memory Speed Supported : 5333 MHz
  • Number of USB 2.0 Ports : 4
  • RAID Supported : Yes
  • Processor Generation Supported : 12th Gen
  • Depth : 9.6"
  • Number of M.2 Interfaces : 3
  • RAID Levels : 10
  • RAID Levels : 5
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Core i7
  • Processor Supported : Core i3
  • Processor Supported : Core i9
  • Processor Supported : Core i5
  • Processor Supported : Celeron
  • Processor Supported : Pentium Gold
  • Memory Technology : DDR4 SDRAM
  • Number of PCI Express x16 Slots : 2
  • Intel Optane Memory Ready : Yes
  • Number of USB 3.2 Ports : 1
  • Total Number of Onboard USB Ports : 7
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of USB 3.2 Gen 1 Ports : 4
  • Number of Onboard USB 2.0 Ports : 4
  • Number of Onboard USB 3.2 Ports : 3
  • S/PDIF : Yes
  • HDMI : Yes
  • DisplayPort : Yes
  • Number of Network (RJ-45) Ports : 2
