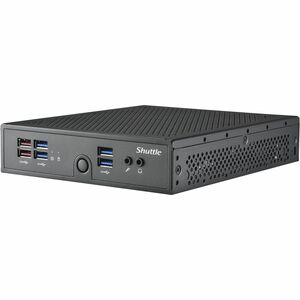

Shuttle XPC slim DS50U7 Barebone System - Slim PC - 1 x Processor Support - 1 Core i7 13th Gen i7-1355U 1.70 GHz Dual-core (2 Core) - Intel Chip - 64 GB DDR5 SDRAM DDR5-5200/PC5-41600 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600, NVMe Contr

FANLESS SLIMPC WITH INTEGRATED ULV PROCESSOR IN INDUSTRIAL DESIGN

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards. Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Availability: Call or email

$999.00
$999.00
Shuttle, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Shuttle XPC slim DS50U7 Barebone System - Slim PC - 1 x Processor Support - 1 Core i7 13th Gen i7-1355U 1.70 GHz Dual-core (2 Core) - Intel Chip - 64 GB DDR5 SDRAM DDR5-5200/PC5-41600 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600, NVMe Controller - UHD Graphics Graphic(s) - DisplayPort - Network (RJ-45) - 3 M.2 Interface(s) - 1 SATA Interface(s) - 2.5 Gigabit Ethernet, Gigabit Ethernet - Windows 10 x64, Windows 11 x64, Linux Supported Operating System - 4 USB 3.2 Gen 1 Port(s)

OVERVIEW:

  • Operating System Supported : Linux
  • Operating System Supported : Windows 11 x64
  • Operating System Supported : Windows 10 x64
  • Chipset Manufacturer : Intel
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Color Family : Black
  • Ethernet Technology : Gigabit Ethernet
  • Ethernet Technology : 2.5 Gigabit Ethernet
  • Maximum Memory Supported : 64 GB
  • Number of Total Expansion Bays : 1
  • Controller Type : NVMe
  • Controller Type : Serial ATA/600
  • Number of Processors Supported : 1
  • Product Color : Black
  • Energy Star : Yes
  • Memory Technology : DDR5 SDRAM
  • HDMI (Rear) : Yes
  • Number of Processors Installed : 1
  • Form Factor : Slim PC
  • Memory Standard : DDR5-5200/PC5-41600
  • Maximum Power Supply Wattage : 90 W
  • Total Number of USB Ports : 8
  • Height : 1.6"
  • Total Number of Memory Slots : 2
  • Width : 6.5"
  • Processor Type : Core i7
  • Depth : 7.9"
  • Processor Generation : 13th Gen
  • Weight (Approximate) : 3.53 lb
  • Graphics Controller Model : UHD Graphics
  • Processor Model : i7-1355U
  • Processor Core : Dual-core (2 Core)
  • Graphics Memory Technology : DDR5 SDRAM
  • Number of USB 3.2 Gen 1 Ports : 4
  • Processor Speed : 1.70 GHz
  • Number of M.2 Interfaces : 3
  • Graphics Memory Accessibility : Shared
  • Number of USB 3.2 Gen 2 Ports : 2
  • Maximum Turbo Speed : 5 GHz
  • 64-bit Processing : Yes
  • Network (RJ-45) : Yes
  • Number of Network (RJ-45) Ports : 2
  • DisplayPort : Yes
  • Number of SATA Interfaces : 1
  • Number of VGA Ports : 1
  • Additional Info

    Additional Info

    SKU 03120DS50U7-BF
    Weight 3.5300
    Is Featured N/A
    Manufacturer Shuttle, Inc
    Manufacturer Part Number DS50U7
    Width 6.5"
    Length 1
    Height 1.6"
    Product ID 03120DS50U7
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
