Shuttle XPC cube SH570R6 Barebone System - Socket LGA-1200 - Intel H570 Chip - 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 4 Total Memory Slots - Serial ATA/600 Controller - UHD Graphics Graphic(s) - 2 3.5" Bay(s) - 4 SATA Interface(s) - P

SUPPORTS 10TH/11TH GENERATION INTEL CORE PROCESSORS AND UP TO THREE UHD DISPLAYS

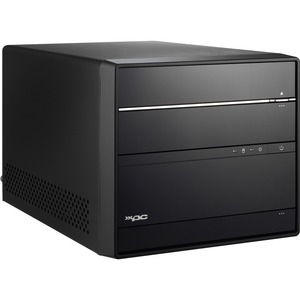

The Shuttle XPC Barebone SH570R6 shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus an optical drive. Even without a dedicated graphics card, up to three UHD displays are supported (if not an F-type CPU is used).

Availability: Call or email

$654.51
$654.51
Shuttle, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Shuttle XPC cube SH570R6 Barebone System - Socket LGA-1200 - Intel H570 Chip - 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 4 Total Memory Slots - Serial ATA/600 Controller - UHD Graphics Graphic(s) - 2 3.5" Bay(s) - 4 SATA Interface(s) - Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron) - Gigabit Ethernet - Windows 10, Windows 11, Linux Supported Operating System - 3 USB 3.2 Gen 1 Port(s) - 300 W

OVERVIEW:

  • Operating System Supported : Linux
  • Operating System Supported : Windows 11
  • Operating System Supported : Windows 10
  • Chipset Manufacturer : Intel
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Color Family : Black
  • Ethernet Technology : Gigabit Ethernet
  • Maximum Memory Supported : 128 GB
  • Number of Total Expansion Bays : 3
  • Controller Type : Serial ATA/600
  • Chipset Model : H570
  • Product Color : Black Aluminum
  • Energy Star : Yes
  • Memory Technology : DDR4 SDRAM
  • Number of External 5.25" Bays : 1
  • HDMI (Rear) : Yes
  • Memory Standard : DDR4-3200/PC4-25600
  • Number of 3.5" Bays : 2
  • Processor Socket : Socket LGA-1200
  • Maximum Power Supply Wattage : 300 W
  • Total Number of USB Ports : 13
  • Processor Supported : Celeron
  • Processor Supported : Pentium Gold
  • Processor Supported : Core i3
  • Processor Supported : Core i5
  • Processor Supported : Core i7
  • Processor Supported : Core i9
  • Height : 7.5"
  • Total Number of Memory Slots : 4
  • Width : 8.5"
  • Total Number of Expansion Slots : 2
  • Depth : 13.1"
  • Weight (Approximate) : 7.72 lb
  • Number of PCI Express x4 Slots : 1
  • Graphics Controller Model : UHD Graphics
  • Number of PCI Express x16 Slots : 1
  • Graphics Memory Technology : DDR4 SDRAM
  • Number of USB 3.2 Gen 1 Ports : 3
  • Graphics Memory Accessibility : Shared
  • Number of USB 3.2 Gen 2 Ports : 4
  • Number of Onboard USB 2.0 Ports : 1
  • USB Type-C (Front) : Yes
  • USB Type-C Detail : USB 3.2 Gen Type-C port (5 Gbps)
  • Number of SATA Interfaces : 4
  • Additional Info

    Additional Info

    SKU 03120SH570R6-BF
    Weight 7.7200
    Is Featured N/A
    Manufacturer Shuttle, Inc
    Manufacturer Part Number SH570R6
    Width 8.5"
    Length 1
    Height 7.5"
    Product ID 03120SH570R6
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
