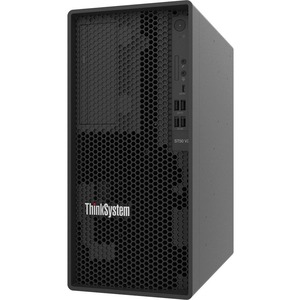

Lenovo ThinkSystem ST50 V2 7D8JA02GNA Tower Server - 1 Xeon E-2324G 3.10 GHz - 16 GB RAM - Serial ATA/600 Controller - Intel C256 Chip - 1 Processor Support - 64 GB RAM Support - TruDDR4 - Gigabit Ethernet - 1 x SFF Bay(s) - 2 x LFF Bay(s) - 1 x 300 W

The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".

This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.

Availability: Call or email

$1,579.00
$1,579.00
Lenovo Group Limited

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Lenovo ThinkSystem ST50 V2 7D8JA02GNA Tower Server - 1 Xeon E-2324G 3.10 GHz - 16 GB RAM - Serial ATA/600 Controller - Intel C256 Chip - 1 Processor Support - 64 GB RAM Support - TruDDR4 - Gigabit Ethernet - 1 x SFF Bay(s) - 2 x LFF Bay(s) - 1 x 300 W

OVERVIEW:

  • Operating System Supported : SUSE Linux Enterprise Server 15 SP4
  • Operating System Supported : SUSE Linux Enterprise Server 15 SP3
  • Operating System Supported : Red Hat Enterprise Linux 9.1
  • Operating System Supported : Red Hat Enterprise Linux 9.0
  • Operating System Supported : Red Hat Enterprise Linux 8.7
  • Operating System Supported : Red Hat Enterprise Linux 8.5
  • Operating System Supported : Red Hat Enterprise Linux 8.4
  • Operating System Supported : Windows Server 2022
  • Operating System Supported : Windows Server 2019
  • Chipset Manufacturer : Intel
  • Number of Processors Supported : 1
  • Limited Warranty : 3 Year
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Form Factor : Tower
  • Ethernet Technology : Gigabit Ethernet
  • Package Contents :
    • ThinkSystem ST50 V2 7D8JA02GNA Server
    • Documentation Flyer
    • Power Cord
  • Standard Memory : 16 GB
  • Number of Total Expansion Bays : 4
  • Controller Type : Serial ATA/600
  • Operating System : No
  • Chipset Model : C256
  • Number of Processors Installed : 1
  • Total Hard Drive Capacity : No
  • Number of Power Supplies Supported : 1
  • Security Features :
    • Chassis Intrusion Switch
    • Power-on Password
    • Administrator's Password
    • Trusted Platform Module (TPM), supporting TPM 2.0
  • Maximum Memory Supported : 64 GB
  • Number of External 5.25" Bays : 1
  • Number of Power Supplies Installed : 1
  • Height : 14.8"
  • Memory Technology : TruDDR4
  • Number of 3.5" Bays : 2
  • RAID Supported : Yes
  • Total Number of USB Ports : 9
  • Processor Type : Xeon
  • Plug/Connector Type : C13
  • Width : 6.7"
  • Environmentally Friendly : Yes
  • Memory Clock Speed : 3.20 GHz
  • Maximum Power Supply Wattage : 300 W
  • Depth : 12.4"
  • Number of Internal 2.5" Bays : 1
  • Processor Model : E-2324G
  • Weight (Approximate) : 20.72 lb
  • Energy Efficiency Certification : China Energy Conservation Program (CECP)
  • Total Number of Memory Slots : 4
  • Graphics Memory Accessibility : Shared
  • Processor Core : Quad-core (4 Core)
  • Hot Swappable Power Supply : No
  • Number of Occupied Memory Slots : 1
  • Number of SFF Bays : 1
  • Graphics Memory Technology : DDR4 SDRAM
  • Processor Speed : 3.10 GHz
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of LFF Bays : 2
  • Network (RJ-45) : Yes
  • Hot Swappable Bays : No
  • Number of Network (RJ-45) Ports : 1
  • Error Checking : ECC
  • Total Number of Expansion Slots : 3
  • Signal Processing : Unregistered (Unbuffered)
  • PCI Express x1 (Gen 3.x) Slots : 1
  • Cache : 8 MB
  • Remote Management : Yes
  • Remote Management Controller : XClarity
  • PCI Express Details : Slot 3: PCIe 3.0 x4 (physical connector is x16) FHHL
  • PCI Express Details : Slot 2: PCIe 3.0 x1 FHHL
  • PCI Express Details : Slot 1: PCIe 4.0 x16 full-height half-length (FHHL)
  • DisplayPort : Yes
