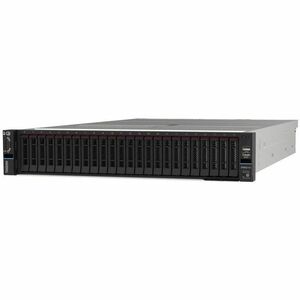

Lenovo ThinkSystem SR650 V3 7D76A07LNA 2U Rack Server - 1 Xeon Silver 4509Y 2.60 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C741 Chip - 2 Processor Support - 8 TB RAM Support - TruDDR5 - 0, 1, 5, 6, 10, 50, 60 RAID Levels - AST2600 Up to 16 MB Graphi

The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Availability: Call or email

$11,544.95
$11,544.95
Lenovo Group Limited

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Lenovo ThinkSystem SR650 V3 7D76A07LNA 2U Rack Server - 1 Xeon Silver 4509Y 2.60 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C741 Chip - 2 Processor Support - 8 TB RAM Support - TruDDR5 - 0, 1, 5, 6, 10, 50, 60 RAID Levels - AST2600 Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 750 W - Intel Optane Memory Ready

OVERVIEW:

  • Operating System Supported : Ubuntu 24.04 LTS x64
  • Operating System Supported : Red Hat Enterprise Linux 9.4
  • Operating System Supported : Ubuntu 22.04 LTS x64
  • Operating System Supported : SUSE Linux Enterprise Server 15 SP5
  • Operating System Supported : SUSE Linux Enterprise Server 15 SP4
  • Operating System Supported : Red Hat Enterprise Linux 9.3
  • Operating System Supported : Red Hat Enterprise Linux 9.2
  • Operating System Supported : Red Hat Enterprise Linux 9.1
  • Operating System Supported : Red Hat Enterprise Linux 9.0
  • Operating System Supported : Red Hat Enterprise Linux 8.9
  • Operating System Supported : Red Hat Enterprise Linux 8.8
  • Operating System Supported : Red Hat Enterprise Linux 8.7
  • Operating System Supported : Red Hat Enterprise Linux 8.6
  • Operating System Supported : Windows Server 2022
  • Operating System Supported : Windows Server 2019
  • Operating System Supported : Windows 10 Pro x64
  • Operating System Supported : Windows 11 Pro x64
  • Chipset Manufacturer : Intel
  • Number of Processors Supported : 2
  • Limited Warranty : 3 Year
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Form Factor : Rack
  • Ethernet Technology : Gigabit Ethernet
  • Package Contents :
    • ThinkSystem SR650 V3 7D76A07LNA Server
    • Toolless Slide Rail Kit
  • Standard Memory : 32 GB
  • Number of Total Expansion Bays : 8
  • Controller Type : 12Gb/s SAS
  • Chipset Model : C741
  • Number of Processors Installed : 1
  • Additional Warranty Information :

    Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).

  • Number of Power Supplies Supported : 2
  • Rack Height : 2U
  • Security Features :
    • Power-on Password
    • Administrator's Password
    • Root of Trust Module Supporting TPM 2.0
    • Platform Firmware Resiliency (PFR)
  • Maximum Memory Supported : 8 TB
  • Controller Model : 940-8i 4GB
  • Number of Power Supplies Installed : 1
  • Height : 3.4"
  • Energy Star : Yes
  • Memory Technology : TruDDR5
  • Graphics Controller Model : AST2600
  • RAID Supported : Yes
  • Total Number of USB Ports : 6
  • Processor Type : Xeon Silver
  • Plug/Connector Type : C13
  • Width : 17.5"
  • Environmentally Friendly : Yes
  • Memory Clock Speed : 4.80 GHz
  • RAID Levels : 0, 1, 5, 6, 10, 50, 60
  • Number of USB 2.0 Ports : 1
  • Processor Generation : 5th Gen
  • Maximum Power Supply Wattage : 750 W
  • Depth : 30.1"
  • Environmental Certification : GREENGUARD
  • Environmental Certification : Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
  • Environmental Certification : China Environmental Labeling Program (CELP)
  • Number of Internal 2.5" Bays : 8
  • Graphics Memory Capacity : 16 MB
  • Processor Model : 4509Y
  • Weight (Approximate) : 85.54 lb
  • Energy Efficiency Certification : ENERGY STAR 4.0
  • Energy Efficiency Certification : China Energy Conservation Program (CECP)
  • Total Number of Memory Slots : 32.0
  • Processor Core : Octa-core (8 Core)
  • Hot Swappable Power Supply : Yes
  • Number of Occupied Memory Slots : 1
  • Number of SFF Bays : 8
  • Processor Speed : 2.60 GHz
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Intel Optane Memory Ready : Yes
  • Network (RJ-45) : Yes
  • Hot Swappable Bays : Yes
  • Error Checking : ECC
  • Total Number of Expansion Slots : 3.0
  • VGA : Yes
  • Signal Processing : Registered (Buffered)
  • Cache : 22.50 MB
  • Remote Management : Yes
  • Remote Management Controller : XClarity Controller 2 (XCC2) Standard
  • PCI Express Details : 3 (x16, x8, x8) Gen5
  • Additional Info

    Additional Info

    SKU 023347D76A07LNA-BF
    Weight 85.5400
    Is Featured N/A
    Manufacturer Lenovo Group Limited
    Manufacturer Part Number 7D76A07LNA
    Width 17.5"
    Length 1
    Height 3.4"
    Product ID 023347D76A07LNA
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
