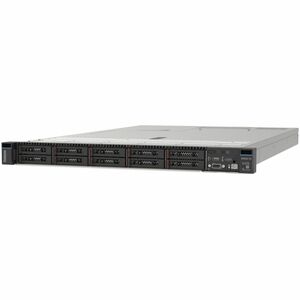

Lenovo ThinkSystem SR630 V3 7D731000NA 1U Rack Server - 1 x Intel Xeon Silver 4410T 2.7 GHz - 64 GB RAM - 5.76 TB SSD - (3 x 1.92TB) SSD Configuration - 12Gb/s SAS Controller - Pre-Configured - Intel C741 Chip - 2 Processor Support - 8 TB RAM Support - Tr

Lenovo ThinkSystem SR630 V3 7D731000NA 1U Rack Server - 1 x Intel Xeon Silver 4410T 2.7 GHz - 64 GB RAM - 5.76 TB SSD - (3 x 1.92TB) SSD Configuration - 12Gb/s SAS Controller - Pre-Configured - Intel C741 Chip - 2 Processor Support - 8 TB RAM Support - Tr

The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Availability: Call or email

Regular Price: $7,028.69

Special Price $6,606.97

Regular Price: $7,028.69

Special Price $6,606.97

Qty:

Description

Details

Lenovo ThinkSystem SR630 V3 7D731000NA 1U Rack Server - 1 x Intel Xeon Silver 4410T 2.7 GHz - 64 GB RAM - 5.76 TB SSD - (3 x 1.92TB) SSD Configuration - 12Gb/s SAS Controller - Pre-Configured - Intel C741 Chip - 2 Processor Support - 8 TB RAM Support - TruDDR5 - 0, 1, 5, 10, JBOD RAID Levels - Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 1100 W - Redundant Power Supply

OVERVIEW:

Operating System Supported : Ubuntu 20.04 LTS x64

Operating System Supported : Ubuntu 24.04 LTS x64

Operating System Supported : SUSE Linux Enterprise Server 15 SP6

Operating System Supported : Windows 11

Operating System Supported : Windows 10 x64

Operating System Supported : SUSE Linux Enterprise Server 15 SP4

Operating System Supported : Red Hat Enterprise Linux 9.1

Operating System Supported : Red Hat Enterprise Linux 9.0

Operating System Supported : Red Hat Enterprise Linux 8.7

Operating System Supported : Red Hat Enterprise Linux 8.6

Operating System Supported : Red Hat Enterprise Linux 9.4

Operating System Supported : Red Hat Enterprise Linux 8.10

Operating System Supported : Ubuntu 22.04 LTS x64

Operating System Supported : SUSE Linux Enterprise Server 15 SP5

Operating System Supported : Red Hat Enterprise Linux 9.3

Operating System Supported : Red Hat Enterprise Linux 9.2

Operating System Supported : Red Hat Enterprise Linux 8.9

Operating System Supported : Red Hat Enterprise Linux 8.8

Operating System Supported : Windows Server 2022

Operating System Supported : Windows Server 2019

Chipset Manufacturer : Intel

Number of Processors Supported : 2

Limited Warranty : 3 Year

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Form Factor : Rack

Ethernet Technology : 10 Gigabit Ethernet

Package Contents :

ThinkSystem SR630 V3 7D731000NA Server
Toolless Slide Rail Kit

Standard Memory : 64 GB

Number of Total Expansion Bays : 8

Controller Type : 12Gb/s SAS

Chipset Model : C741

Number of Processors Installed : 1

Additional Warranty Information :

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).

Number of Power Supplies Supported : 2

Rack Height : 1U

Security Features :

Chassis intrusion switch
Power-on password
Administrator's password
Root of Trust module supporting TPM 2.0
Platform Firmware Resiliency (PFR)

Maximum Memory Supported : 8 TB

Controller Model : 5350-8i

Number of Power Supplies Installed : 2

Height : 1.7"

Memory Technology : TruDDR5

RAID Supported : Yes

Total Number of USB Ports : 6

Processor Type : Xeon Silver

Plug/Connector Type : C13

Width : 17.3"

Environmentally Friendly : Yes

RAID Levels : 0, 1, 5, 10, JBOD

Number of USB 2.0 Ports : 1

Processor Generation : 4th Gen

Maximum Power Supply Wattage : 1100 W

Depth : 30.4"

Environmental Certification : GREENGUARD

Environmental Certification : Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)

Environmental Certification : China Environmental Labeling Program (CELP)

Number of Internal 2.5" Bays : 8

Graphics Memory Capacity : 16 MB

Processor Model : 4410T

Number of Solid State Drives : 3

Redundant Power Supply : Yes

Weight (Approximate) : 45.86 lb

Energy Efficiency Certification : China Energy Conservation Program (CECP)

Total Number of Memory Slots : 32

Processor Core : Deca-core (10 Core)

Total Solid State Drive Capacity : 5.76 TB

Hot Swappable Power Supply : Yes

Number of Occupied Memory Slots : 2

Number of SFF Bays : 8

Processor Speed : 2.70 GHz

Solid State Drive Interface : Serial ATA/600

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Intel Optane Memory Ready : No

Network (RJ-45) : Yes

Hot Swappable Bays : Yes

Number of Network (RJ-45) Ports : 2

Error Checking : ECC

Total Number of Expansion Slots : 2

VGA : Yes

Signal Processing : Registered (Buffered)

Cache : 26.25 MB

Remote Management : Yes

Remote Management Controller : XClarity Controller (XCC) Platinum

PCI Express Details : 1x PCIe x16 full-height half-length slot ; 1x PCIe x16 low-profile slot

Additional Info

SKU	023347D731000NA-BF
Weight	45.8600
Is Featured	N/A
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7D731000NA
Width	17.3"
Length	1
Height	1.7"
Product ID	023347D731000NA
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
