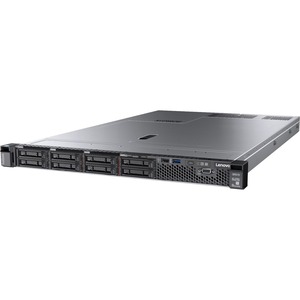

Lenovo ThinkSystem SR570 7Y03A06BNA 1U Rack Server - Xeon Silver 4216 2.20 GHz - 16 GB RAM - Serial ATA/600 Controller - Intel C622 Chip - 2 Processor Support - TruDDR4 - G200 Up to 16 MB Graphic Card - Gigabit Ethernet

Lenovo ThinkSystem SR570 is a 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as the balance of performance, memory, and flexible storage configurations. The SR570 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, infrastructure security, web serving, and application development.

Availability: Call or email

$5,054.26

Qty:

Description

Details

Lenovo ThinkSystem SR570 7Y03A06BNA 1U Rack Server - Xeon Silver 4216 2.20 GHz - 16 GB RAM - Serial ATA/600 Controller - Intel C622 Chip - 2 Processor Support - TruDDR4 - G200 Up to 16 MB Graphic Card - Gigabit Ethernet

OVERVIEW:

Operating System Supported : SUSE Linux Enterprise Server 12 SP3

Operating System Supported : Red Hat Enterprise Linux 6.9

Operating System Supported : Red Hat Enterprise linux 7.4

Operating System Supported : Windows Server 2012 R2

Operating System Supported : Windows Server 2016

Chipset Manufacturer : Intel

Number of Processors Supported : 2

Limited Warranty : 3 Year

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Form Factor : Rack

Ethernet Technology : Gigabit Ethernet

Package Contents :

ThinkSystem SR570 7Y03A06BNA Server
Rack Installation Guide
Electronic Publications Flyer

Standard Memory : 16 GB

Controller Type : Serial ATA/600

Chipset Model : C622

Number of Power Supplies Supported : 2

Rack Height : 1U

Security Features :

Power-on password
Administrator's password
Secure firmware updates
Onboard Trusted Platform Module (TPM) version 1.2 or 2.0 (configurable UEFI system setting)
Trusted Cryptographic Module (TCM) (optional; available in China only)
Lockable front bezel (optional)
Security Key Lifecycle Manager (SKLM) encryption key management for SEDs - FoD upgrade (optional)
Lenovo Business Vantage security software (optional; available in China only)

Height : 1.7"

Energy Star : Yes

Memory Technology : TruDDR4

Graphics Controller Model : G200

RAID Supported : Yes

Total Number of USB Ports : 4

Processor Type : Xeon Silver

Width : 17.1"

Environmentally Friendly : Yes

Number of USB 2.0 Ports : 1

Depth : 28.1"

Graphics Memory Capacity : 16 MB

Number of USB 3.0 Ports : 3

Processor Model : 4216

Weight (Approximate) : 35.27 lb

Energy Efficiency Certification : ENERGY STAR 2.1

Total Number of Memory Slots : 16

Processor Core : Hexadeca-core (16 Core)

Number of Occupied Memory Slots : 2

Processor Speed : 2.20 GHz

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Network (RJ-45) : Yes

Number of Network (RJ-45) Ports : 1

Error Checking : ECC

Total Number of Expansion Slots : 3

Cache : 22 MB

Remote Management : Yes

Remote Management Controller : XClarity Controller

PCI Express Details : Slot 1: PCIe 3.0 x8; low profile Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x8 or x16; low profile

Additional Info

SKU	023347Y03A06BNA-BF
Weight	35.2700
Is Featured	N/A
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7Y03A06BNA
Width	17.1"
Length	1
Height	1.7"
Product ID	023347Y03A06BNA
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

Lenovo ThinkSystem SR570 7Y03A06BNA 1U Rack Server - Xeon Silver 4216 2.20 GHz - 16 GB RAM - Serial ATA/600 Controller - Intel C622 Chip - 2 Processor Support - TruDDR4 - G200 Up to 16 MB Graphic Card - Gigabit Ethernet
