Lenovo ThinkSystem SR570 7Y03A06ANA 1U Rack Server - 1 Xeon Gold 6242 2.80 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C622 Chip - 2 Processor Support - 1 TB RAM Support - TruDDR4 - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - G200 Up to 16 MB Graphic C

Lenovo ThinkSystem SR570 7Y03A06ANA 1U Rack Server - 1 Xeon Gold 6242 2.80 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C622 Chip - 2 Processor Support - 1 TB RAM Support - TruDDR4 - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - G200 Up to 16 MB Graphic C

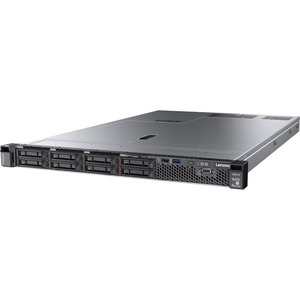

Lenovo ThinkSystem SR570 is a 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as the balance of performance, memory, and flexible storage configurations. The SR570 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, infrastructure security, web serving, and application development.

Availability: Call or email

$8,449.43

Qty:

Description

Details

Lenovo ThinkSystem SR570 7Y03A06ANA 1U Rack Server - 1 Xeon Gold 6242 2.80 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C622 Chip - 2 Processor Support - 1 TB RAM Support - TruDDR4 - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - G200 Up to 16 MB Graphic Card - Gigabit Ethernet - 4 x LFF Bay(s) - Hot Swappable Bays - 1 x 750 W - Intel Optane Memory Ready

OVERVIEW:

Operating System Supported : SUSE Linux Enterprise Server 12 SP4

Operating System Supported : SuSE Linux Enterprise Server 15

Operating System Supported : SUSE Linux Enterprise Server 15 SP1

Operating System Supported : Red Hat Enterprise Linux 7.7

Operating System Supported : Red Hat Enterprise Linux 7.6

Operating System Supported : Red Hat Enterprise Linux 6.9

Operating System Supported : Red Hat Enterprise linux 7.4

Operating System Supported : Windows Server 2012 R2

Operating System Supported : Windows Server 2019

Operating System Supported : Windows Server 2016

Chipset Manufacturer : Intel

Number of Processors Supported : 2

Limited Warranty : 3 Year

Number of Hard Drives : No

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Form Factor : Rack

Ethernet Technology : Gigabit Ethernet

Package Contents :

ThinkSystem SR570 7Y03A06ANA Server
Tool-less Rail Kit
Rack Installation Guide
Electronic Publications Flyer
2.8 m C13-C14 Rack Power Cable

Standard Memory : 32 GB

Number of Total Expansion Bays : 4

Controller Type : 12Gb/s SAS

Operating System : No

Chipset Model : C622

Number of Processors Installed : 1

Additional Warranty Information : Three-year customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered

Number of Power Supplies Supported : 2

Rack Height : 1U

Security Features :

Power-on password
Administrator's password
Secure firmware updates
Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting)

Maximum Memory Supported : 1 TB

Controller Model : 930-8i

Number of Power Supplies Installed : 1

Height : 1.7"

Energy Star : Yes

Memory Technology : TruDDR4

Number of 3.5" Bays : 4

Graphics Controller Model : G200

RAID Supported : Yes

Total Number of USB Ports : 4

Processor Type : Xeon Gold

Plug/Connector Type : C13/C14

Width : 17.1"

Environmentally Friendly : Yes

Memory Clock Speed : 2.67 GHz

RAID Levels : 0, 1, 5, 6, 10, 50, 60, JBOD

Number of USB 2.0 Ports : 1

Processor Generation : 2nd Gen

Maximum Power Supply Wattage : 750 W

Depth : 28.1"

Graphics Memory Capacity : 16 MB

Number of USB 3.0 Ports : 3

Processor Model : 6242

Number of Solid State Drives : No

Weight (Approximate) : 35.27 lb

Energy Efficiency Certification : ENERGY STAR 2.1

Total Number of Memory Slots : 16

Processor Core : Hexadeca-core (16 Core)

Hot Swappable Power Supply : Yes

Number of Occupied Memory Slots : 1

Processor Speed : 2.80 GHz

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Intel Optane Memory Ready : Yes

Number of LFF Bays : 4

Network (RJ-45) : Yes

Hot Swappable Bays : Yes

Number of Network (RJ-45) Ports : 2

Error Checking : ECC

Total Number of Expansion Slots : 3

VGA : Yes

Signal Processing : Registered (Buffered)

Optical Drive Type : No

Cache : 22 MB

Remote Management : Yes

Remote Management Controller : XClarity Controller

PCI Express Details : Slot 1: PCIe 3.0 x8; low profile Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x8 or x16; low profile

Additional Info

SKU	023347Y03A06ANA-BF
Weight	35.2700
Is Featured	N/A
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7Y03A06ANA
Width	17.1"
Length	1
Height	1.7"
Product ID	023347Y03A06ANA
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
