HPE SMART CHOICE ProLiant DL320 G11 1U Rack Server - 1 x Intel Xeon Gold 5416S 2 GHz - 64 GB RAM - NVMe Controller - Intel C741 Chip - 1 Processor Support - 2.04 TB RAM Support - DDR5 SDRAM - Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) -

HPE SMART CHOICE ProLiant DL320 G11 1U Rack Server - 1 x Intel Xeon Gold 5416S 2 GHz - 64 GB RAM - NVMe Controller - Intel C741 Chip - 1 Processor Support - 2.04 TB RAM Support - DDR5 SDRAM - Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) -

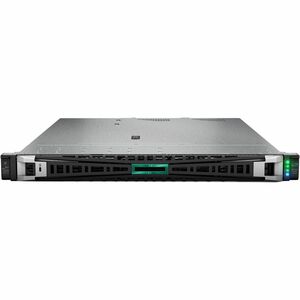

HPE ProLiant DL320 Gen11

Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores and 270W, increased memory capability (up to 2 TB 5200 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

Availability: Call or email

To see product price, add this item to your cart. You can always remove it later. What's this?

Qty:

Description

Details

HPE SMART CHOICE ProLiant DL320 G11 1U Rack Server - 1 x Intel Xeon Gold 5416S 2 GHz - 64 GB RAM - NVMe Controller - Intel C741 Chip - 1 Processor Support - 2.04 TB RAM Support - DDR5 SDRAM - Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 800 W - Redundant Power Supply

OVERVIEW:

Operating System Supported : CentOS

Operating System Supported : Citrix XenServer

Operating System Supported : Oracle Linux

Operating System Supported : Ubuntu

Operating System Supported : SuSE Linux Enterprise Server

Operating System Supported : Red Hat Enterprise Linux

Operating System Supported : Windows Server

Chipset Manufacturer : Intel

Number of Processors Supported : 1

Limited Warranty : 3 Year

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Form Factor : Rack

Ethernet Technology : Gigabit Ethernet

Package Contents :

ProLiant DL320 G11 Server
Rail Kit
6-foot IEC C-13/C-14 Jumper Cord

Standard Memory : 64 GB

Number of Total Expansion Bays : 9

Controller Type : NVMe

Chipset Model : C741

Number of Processors Installed : 1

Additional Warranty Information :

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Number of Power Supplies Supported : 2

Rack Height : 1U

Security Features :

UEFI Secure Boot and Secure Start support
Tamper-free updates - components digitally signed and verified
Immutable Silicon Root of Trust
Ability to rollback firmware
FIPS 140-2 validation
Secure erase of NAND/User data
Common Criteria certification
Configurable for PCI DSS compliance
Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China.
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
Bezel Locking Kit option
Support for Commercial National Security Algorithms (CNSA)
Chassis Intrusion detection option
Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware

Maximum Memory Supported : 2.04 TB

Controller Model : NS204i-u

Number of Power Supplies Installed : 2

Height : 1.7"

Energy Star : Yes

Memory Technology : DDR5 SDRAM

Total Number of USB Ports : 4

Processor Type : Xeon Gold

Plug/Connector Type : C13/C14

Width : 17.1"

Environmentally Friendly : Yes

Processor Generation : 4th Gen

Maximum Power Supply Wattage : 800 W

Depth : 23.8"

Number of Internal 2.5" Bays : 8

Graphics Memory Capacity : 16 MB

Processor Model : 5416S

Redundant Power Supply : Yes

Weight (Approximate) : 36.84 lb

Energy Efficiency Certification : ENERGY STAR 4.0

Total Number of Memory Slots : 16.0

Number of Media Drive Bays : 1

Processor Core : Hexadeca-core (16 Core)

Hot Swappable Power Supply : Yes

Energy Efficiency Compliance : Energy-related Products Directive Lot 9 (ErP Lot 9)

Number of Occupied Memory Slots : 2

Number of SFF Bays : 8

Processor Speed : 2 GHz

Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)

Network (RJ-45) : Yes

Hot Swappable Bays : Yes

Number of Network (RJ-45) Ports : 2

Error Checking : ECC

Total Number of Expansion Slots : 2.0

VGA : Yes

Signal Processing : Registered (Buffered)

Cache : 30 MB

Remote Management : Yes

Remote Management Controller : HPE iLO6

PCI Express Details : 1 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot as default. 1 x16 FHHL PCIe Gen5 optional

Additional Info

SKU	04096P69302005-BF
Weight	36.8400
Is Featured	N/A
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	P69302-005
Width	17.1"
Length	1
Height	1.7"
Product ID	04096P69302005
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
