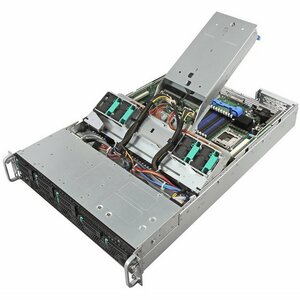

Intel Server System R2208LH2HKC2 Server Barebone System - 2U Rack-mountable - Socket R LGA-2011 - 4 x Processor Support - 1.50 TB DDR3 SDRAM DDR3-1600/PC3-12800 Maximum RAM Support - 48 Total Memory Slots - Serial ATA RAID Supported, Serial Attached SCSI

Best-in-class performance, reliability, and serviceability

The Intel® Server System R2200LH2/R2200LT2 family is the uncompromising performance and high reliability server of choice for demanding customers. It features support for four powerful Intel® Xeon® processor E5-4600 and a massive memory capacity of 1.5 TB via 48 memory sockets in a dense 2U system. Six PCIe* Gen 3 x16 slots, two Intel® I/O Expansion Modules, and options for integrated dual 1 GbE or 10 GbE provide the expandability and flexibility that enterprise-class customers demand.

Availability: Call or email

$4,353.09

Qty:

Description

Details

Intel Server System R2208LH2HKC2 Server Barebone System - 2U Rack-mountable - Socket R LGA-2011 - 4 x Processor Support - 1.50 TB DDR3 SDRAM DDR3-1600/PC3-12800 Maximum RAM Support - 48 Total Memory Slots - Serial ATA RAID Supported, Serial Attached SCSI (SAS) Controller - Network (RJ-45) - 10 SATA Interface(s) - Processor Support (Xeon) - 2 x 1600 W - 3 Year

OVERVIEW:

Limited Warranty : 3 Year

Ethernet Technology : Gigabit Ethernet

Package Contents :

Server System R2208LH2HKC2
Intel Server Board S4600LH2 Supporting 48 DIMMs
8 x 2.5" Hot Swap Drive Carriers
1 x RKSAS8R5 RAID Upgrade Key
2 x SFF8088 to SFF8088 Cables
1 x Integrated Dual Port Intel Ethernet Controller I350 (1GbE)
2 x 1600W AC Platinum Efficiency Redundant Power Supplies
1 x Fan Board
1 x Power Distribution Board
2 x Risers with 3 x16 Slots (2xFHFL 1xFHHL)
2 x Front CPU Heatsinks Aluminum Extrusion
2 x Rear CPU Heatsinks Cu/Al Extrusion
11 x Redundant and Hotswap Cooling Fans
1 x Extended Value Rails
1 x Rack Handles
1 x Intel Remote Management Module 4

Maximum Memory Supported : 1.50 TB

Controller Type : Serial Attached SCSI (SAS)

Controller Type : Serial ATA

Number of Processors Supported : 4

Memory Technology : DDR3 SDRAM

RAID Supported : Yes

Number of Power Supplies Installed : 2

Form Factor : Rack-mountable

Memory Standard : DDR3-1600/PC3-12800

RAID Levels : 0, 1, 1+0

Processor Socket : Socket R LGA-2011

Maximum Power Supply Wattage : 1600 W

Rack Height : 2U

Total Number of USB Ports : 6

Processor Supported : Xeon

Height : 3.4"

Total Number of Memory Slots : 48

Width : 17.2"

Total Number of Expansion Slots : 6

Depth : 28"

Number of PCI Express x16 Slots : 6

Graphics Memory Technology : DDR3 SDRAM

Graphics Memory Accessibility : Shared

64-bit Processing : Yes

Network (RJ-45) : Yes

Number of SATA Interfaces : 10

Number of SAS Interfaces : 8

Additional Info

SKU	02160R2208LH2HKC2-BF
Weight	1.0000
Is Featured	N/A
Manufacturer	Intel Corporation
Manufacturer Part Number	R2208LH2HKC2
Width	17.2"
Length	1
Height	3.4"
Product ID	02160R2208LH2HKC2
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

Intel Server System R2208LH2HKC2 Server Barebone System - 2U Rack-mountable - Socket R LGA-2011 - 4 x Processor Support - 1.50 TB DDR3 SDRAM DDR3-1600/PC3-12800 Maximum RAM Support - 48 Total Memory Slots - Serial ATA RAID Supported, Serial Attached SCSI
