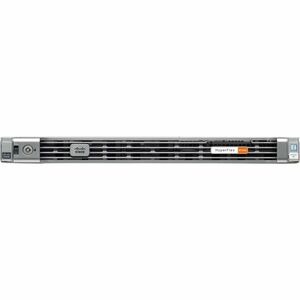

Cisco HyperFlex HX220c M4 1U Rack Server - 2 Xeon E5-2630 v4 2.20 GHz - 256 GB RAM - 12Gb/s SAS Controller - Intel C610 Chip - 2 Processor Support - 1.50 TB RAM Support - DDR4 SDRAM - G200e Up to 8 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot

Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a pre integrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.

Availability: Call or email

$21,262.50

Qty:

Description

Details

Cisco HyperFlex HX220c M4 1U Rack Server - 2 Xeon E5-2630 v4 2.20 GHz - 256 GB RAM - 12Gb/s SAS Controller - Intel C610 Chip - 2 Processor Support - 1.50 TB RAM Support - DDR4 SDRAM - G200e Up to 8 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 770 W - Redundant Power Supply

OVERVIEW:

Chipset Manufacturer : Intel

Number of Processors Supported : 2

Limited Warranty : 3 Year

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Form Factor : Rack

Ethernet Technology : Gigabit Ethernet

Standard Memory : 256 GB

Number of Total Expansion Bays : 8

Controller Type : 12Gb/s SAS

Chipset Model : C610

Number of Processors Installed : 2

Additional Warranty Information :

Three-year parts coverage.
Next business day (NBD) onsite parts replacement eight hours a day, five days a week.
90-day software warranty on media.

Number of Power Supplies Supported : 2

Rack Height : 1U

Maximum Memory Supported : 1.50 TB

Number of Power Supplies Installed : 2

Height : 1.7"

Memory Technology : DDR4 SDRAM

Graphics Controller Model : G200e

RAID Supported : No

Total Number of USB Ports : 2

Processor Type : Xeon

Width : 19"

Maximum Power Supply Wattage : 770 W

Depth : 31"

Number of Internal 2.5" Bays : 8

Graphics Memory Capacity : 8 MB

Number of USB 3.0 Ports : 2

Processor Model : E5-2630 v4

Redundant Power Supply : Yes

Weight (Approximate) : 37.92 lb

Processor Core : Deca-core (10 Core)

Hot Swappable Power Supply : Yes

Number of Occupied Memory Slots : 8

Number of SFF Bays : 8

Processor Speed : 2.20 GHz

Network (RJ-45) : Yes

Hot Swappable Bays : Yes

Number of Network (RJ-45) Ports : 1

Error Checking : ECC

Total Number of Expansion Slots : 2

VGA : Yes

Signal Processing : Registered (Buffered)

Cache : 50 MB

Remote Management : Yes

PCI Express x16 (Gen 3.x) Slots : 2

Remote Management Controller : Integrated baseboard management controller (BMC)

PCI Express Details : Two PCIe 3.0 slots

Riser Card : Riser 1: 1 full-height, 3/4-length slot with x24 connector and x16 lane; Riser 2: 1 half-height, half-length slot with x24 connector and x16 lane

Additional Info

SKU	01468HXAFSP220M4SBV-BF
Weight	37.9200
Is Featured	N/A
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	HXAF-SP-220M4S-BV
Width	19"
Length	1
Height	1.7"
Product ID	01468HXAFSP220M4SBV
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
