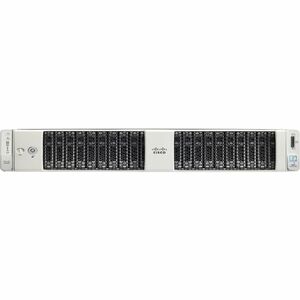

Cisco C240 M5 2U Rack-mountable Server - 2 Xeon Gold 6240R 2.40 GHz - 768 GB RAM - 240 GB SSD - Serial ATA, 12Gb/s SAS Controller - Intel C621 Chip - 2 Processor Support - 3 TB RAM Support - DDR4 SDRAM - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - Pilot 4

The UCS C240 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666-MHz or 2933-MHz DIMMs with capacity points up to 128 GB, 2666-MHz PMEMs with capacity points up to 512 GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® Persistent Memory Modules (PMEMs). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMEMs).
The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

Availability: Call or email

Regular Price: $32,687.38

Special Price $30,726.13

Regular Price: $32,687.38

Special Price $30,726.13

Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Cisco C240 M5 2U Rack-mountable Server - 2 Xeon Gold 6240R 2.40 GHz - 768 GB RAM - 240 GB SSD - Serial ATA, 12Gb/s SAS Controller - Intel C621 Chip - 2 Processor Support - 3 TB RAM Support - DDR4 SDRAM - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - Pilot 4 Up to 16 MB Graphic Card - 10 Gigabit Ethernet, 25 Gigabit Ethernet - 2 x SFF Bay(s) - 12 x LFF Bay(s) - Hot Swappable Bays - 2 x 1600 W - Redundant Power Supply

OVERVIEW:

  • Operating System Supported : SUSE Linux Enterprise Server 12
  • Operating System Supported : SUSE Linux Enterprise Server 11 SP3
  • Operating System Supported : Red Hat Enterprise Linux 7.3
  • Operating System Supported : Red Hat Enterprise Linux 7.2
  • Operating System Supported : Red Hat Enterprise Linux 7
  • Operating System Supported : Red Hat Enterprise Linux Server 6.7
  • Operating System Supported : Red Hat Enterprise Linux 6.6
  • Operating System Supported : Red Hat Enterprise Linux 6.5
  • Operating System Supported : Windows Server 2016
  • Operating System Supported : Windows Server 2012 R2
  • Operating System Supported : Windows Server 2012
  • Chipset Manufacturer : Intel
  • Number of Processors Supported : 2
  • Limited Warranty : 3 Year
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Form Factor : Rack-mountable
  • Ethernet Technology : 25 Gigabit Ethernet
  • Ethernet Technology : 10 Gigabit Ethernet
  • Standard Memory : 768 GB
  • Number of Total Expansion Bays : 14
  • Controller Type : 12Gb/s SAS
  • Controller Type : Serial ATA
  • Chipset Model : C621
  • Number of Processors Installed : 2
  • Additional Warranty Information :

    Three-year parts coverage.

  • Number of Power Supplies Supported : 2
  • Rack Height : 2U
  • Maximum Memory Supported : 3 TB
  • Number of Power Supplies Installed : 2
  • Height : 3.4"
  • Memory Technology : DDR4 SDRAM
  • Number of 3.5" Bays : 12
  • Graphics Controller Model : Pilot 4
  • RAID Supported : Yes
  • Total Number of USB Ports : 3
  • Processor Type : Xeon Gold
  • Width : 19"
  • Memory Clock Speed : 2.93 GHz
  • RAID Levels : 0, 1, 5, 6, 10, 50, 60, JBOD
  • Processor Generation : 2nd Gen
  • Maximum Power Supply Wattage : 1600 W
  • Depth : 30.2"
  • Number of Internal 2.5" Bays : 2
  • Graphics Memory Capacity : 16 MB
  • Number of USB 3.0 Ports : 3
  • Processor Model : 6240R
  • Redundant Power Supply : Yes
  • Weight (Approximate) : 66 lb
  • Total Number of Memory Slots : 24
  • Processor Core : Tetracosa-core (24 Core)
  • Total Solid State Drive Capacity : 240 GB
  • Hot Swappable Power Supply : Yes
  • Number of Occupied Memory Slots : 12
  • Number of SFF Bays : 2
  • Processor Speed : 2.40 GHz
  • Solid State Drive Interface : M.2
  • Number of LFF Bays : 12
  • Network (RJ-45) : Yes
  • Hot Swappable Bays : Yes
  • Number of Network (RJ-45) Ports : 2
  • Error Checking : ECC
  • Total Number of Expansion Slots : 6
  • VGA : Yes
  • Signal Processing : Registered (Buffered)
  • Cache : 35.75 MB
  • PCI Express x8 (Gen 3.x) Slots : 2
  • PCI Express x16 (Gen 3.x) Slots : 1
  • Additional Info

    Additional Info

    SKU 01468UCSSPC240M5CA-BF
    Weight 66.0000
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number UCS-SP-C240M5C-A
    Width 19"
    Length 1
    Height 3.4"
    Product ID 01468UCSSPC240M5CA
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
