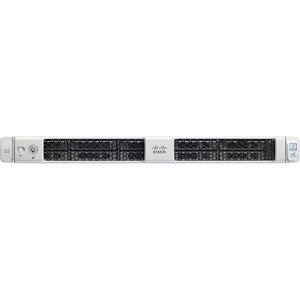

Cisco C220 M5 1U Rack Server - 2 Xeon Gold 5120 2.20 GHz - 96 GB RAM - 12Gb/s SAS Controller - 2 Processor Support - 3 TB RAM Support - DDR4 SDRAM - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - G200e Up to 8 MB Graphic Card - 40 Gigabit Ethernet - 10 x SFF

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.

The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

Availability: Call or email

$10,407.08
$10,407.08
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Cisco C220 M5 1U Rack Server - 2 Xeon Gold 5120 2.20 GHz - 96 GB RAM - 12Gb/s SAS Controller - 2 Processor Support - 3 TB RAM Support - DDR4 SDRAM - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - G200e Up to 8 MB Graphic Card - 40 Gigabit Ethernet - 10 x SFF Bay(s) - Hot Swappable Bays - 2 x 770 W - Redundant Power Supply

OVERVIEW:

  • Number of Processors Supported : 2
  • Limited Warranty : 3 Year
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Form Factor : Rack
  • Ethernet Technology : 40 Gigabit Ethernet
  • Standard Memory : 96 GB
  • Number of Total Expansion Bays : 10
  • Controller Type : 12Gb/s SAS
  • Operating System : No
  • Number of Processors Installed : 2
  • Number of Power Supplies Supported : 2
  • Rack Height : 1U
  • Maximum Memory Supported : 3 TB
  • Number of Power Supplies Installed : 2
  • Height : 1.7"
  • Memory Technology : DDR4 SDRAM
  • Graphics Controller Model : G200e
  • RAID Supported : Yes
  • Processor Type : Xeon Gold
  • Width : 19"
  • RAID Levels : 0, 1, 5, 6, 10, 50, 60, JBOD
  • Maximum Power Supply Wattage : 770 W
  • Depth : 31"
  • Number of Internal 2.5" Bays : 10
  • Graphics Memory Capacity : 8 MB
  • Processor Model : 5120
  • Redundant Power Supply : Yes
  • Weight (Approximate) : 37.50 lb
  • Total Number of Memory Slots : 24
  • Processor Core : Tetradeca-core (14 Core)
  • Number of Occupied Memory Slots : 6
  • Processor Speed : 2.20 GHz
  • Hot Swappable Bays : Yes
  • Optical Drive Type : No
  • Additional Info

    Additional Info

    SKU 01468UCSSPC220M5A3-BF
    Weight 37.5000
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number UCS-SP-C220M5-A3
    Width 19"
    Length 1
    Height 1.7"
    Product ID 01468UCSSPC220M5A3
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
