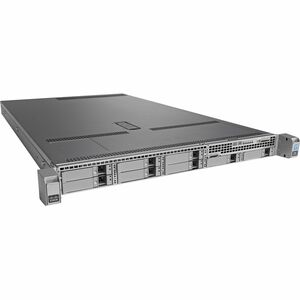

Cisco C220 M4 1U Rack Server - 1 Xeon E5-2609 v3 1.90 GHz - 8 GB RAM - 600 GB HDD - (2 x 300GB) HDD Configuration - 12Gb/s SAS, Serial ATA/600 Controller - Intel C610 Chip - 2 Processor Support - 1.50 TB RAM Support - DDR4 SDRAM - 0, 1, 5, 6, 10, 50, 60 R

The Cisco® UCS C220 M4 SFF rack server is the newest 2-socket, 1U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from web serving to distributed database.

The enterprise-class UCS C220 M4 small form factor (SFF) server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon E5-2600 v3 and v4 series processor family that deliver significant performance and efficiency gains. In addition, the UCS C220 M4 SFF server provides 24 DIMM slots, up to 8 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package.

The C220 M4 SFF server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded (on the motherboard). These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance.

The Cisco UCS C220 M4 SFF server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

Availability: Call or email

$6,155.91
$6,155.91
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Cisco C220 M4 1U Rack Server - 1 Xeon E5-2609 v3 1.90 GHz - 8 GB RAM - 600 GB HDD - (2 x 300GB) HDD Configuration - 12Gb/s SAS, Serial ATA/600 Controller - Intel C610 Chip - 2 Processor Support - 1.50 TB RAM Support - DDR4 SDRAM - 0, 1, 5, 6, 10, 50, 60 RAID Levels - G200e Up to 8 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 770 W - Redundant Power Supply

OVERVIEW:

  • Operating System Supported : SuSE Linux Enterprise Server
  • Operating System Supported : Red Hat Enterprise Linux
  • Operating System Supported : Windows Server 2019 Datacenter
  • Operating System Supported : Windows Server 2019 Standard
  • Operating System Supported : Windows Server 2012 R2 Datacenter
  • Operating System Supported : Windows Server 2012 R2 Standard
  • Operating System Supported : Windows Server 2012 Datacenter
  • Operating System Supported : Windows Server 2012 Standard
  • Chipset Manufacturer : Intel
  • Number of Processors Supported : 2
  • Limited Warranty : 3 Year
  • Number of Hard Drives : 2
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Form Factor : Rack
  • Ethernet Technology : Gigabit Ethernet
  • Standard Memory : 8 GB
  • Number of Total Expansion Bays : 8
  • Controller Type : Serial ATA/600
  • Controller Type : 12Gb/s SAS
  • Chipset Model : C610
  • Number of Processors Installed : 1
  • Additional Warranty Information :
    • Three-year parts coverage.
    • Next business day (NBD) onsite parts replacement eight hours a day, five days a week.
    • 90-day software warranty on media.
  • Total Hard Drive Capacity : 600 GB
  • Number of Power Supplies Supported : 2
  • Rack Height : 1U
  • Maximum Memory Supported : 1.50 TB
  • Hard Drive Interface : 12Gb/s SAS
  • Number of Power Supplies Installed : 2
  • Height : 1.7"
  • Memory Technology : DDR4 SDRAM
  • Graphics Controller Model : G200e
  • RAID Supported : Yes
  • Total Number of USB Ports : 2
  • Processor Type : Xeon
  • Hard Drive RPM : 10000.0
  • Width : 19"
  • Memory Clock Speed : 2.13 GHz
  • RAID Levels : 0, 1, 5, 6, 10, 50, 60
  • Maximum Power Supply Wattage : 770 W
  • Depth : 31"
  • Number of Internal 2.5" Bays : 8
  • Graphics Memory Capacity : 8 MB
  • Number of USB 3.0 Ports : 2.0
  • Processor Model : E5-2609 v3
  • Redundant Power Supply : Yes
  • Weight (Approximate) : 37.92 lb
  • Processor Core : Hexa-core (6 Core)
  • Hot Swappable Power Supply : Yes
  • Number of Occupied Memory Slots : 1.0
  • Number of SFF Bays : 8
  • Processor Speed : 1.90 GHz
  • Network (RJ-45) : Yes
  • Hot Swappable Bays : Yes
  • Number of Network (RJ-45) Ports : 2
  • Error Checking : ECC
  • Total Number of Expansion Slots : 2.0
  • VGA : Yes
  • Signal Processing : Registered (Buffered)
  • Cache : 15 MB
  • Remote Management : Yes
  • Remote Management Controller : Baseboard Management Controller (BMC)
  • PCI Express Details : One full-height profile, 3/4-length slot with x24 connector and x16 lane; One half-height profile, half-length slot with x24 connector and x16 lane, or x8 lane
  • Additional Info

    Additional Info

    SKU 01468CVCDMEM4S-BF
    Weight 37.9200
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number CVC-DME-M4-S
    Width 19"
    Length 1
    Height 1.7"
    Product ID 01468CVCDMEM4S
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
