Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C741 Chip - 4 TB DDR5 SDRAM DDR5-5600/PC5-44800 Maximum RAM Support - 32 Total Memory Slots - Serial ATA RAID Supported, Serial Attached SCSI (SAS), NVMe Controller - G200e 8 MB Gra

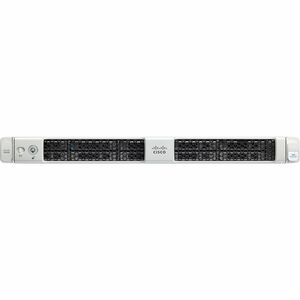

The Cisco UCS C220 M7 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 5th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-5600 Memory DIMMs with DIMM capacity points up to 128GB or 4th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-4800 Memory DIMMs with DIMM capacity points up to 128GB.

CPU:

• Up to 2x 5th Generation Intel® Xeon® Scalable Processors with up to 60 cores per processor or
• Up to 2x 4th Generation Intel® Xeon® Scalable Processors with up to 52 cores per processor.

Memory:

• Up to 4TB with 32 x 128GB DDR5-5600 DIMMs, in a 2-socket configuration with 5th Gen. Intel® Xeon® Scalable Processors or
• Up to 4TB with 32 x 128GB DDR5-4800 DIMMs, in a 2-socket configuration with 4th Gen. Intel® Xeon® Scalable Processors.

The server provides an internal slot for one of the following:

• SATA Interposer to control SATA drives from the PCH (AHCI) or
• Cisco 24G Tri-mode RAID controller1 with cache backup to control SAS/SATA/NVMe drives or
• Cisco 12G RAID controller with cache backup to control SAS/SATA drives or
• Cisco 12G SAS pass-through HBA to control SAS/SATA drives

mLOM: The UCS C220 M7 SFF server has a single 1GBE management port. A modular LAN on motherboard (mLOM)/OCP 3.0 module provides up to two 100GBE ports. A connector on the front of the chassis provides KVM functionality.
