Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C620 Chip - 9 TB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - G200e 8 MB Graphic(s) - 4 3.5" Bay(s) - Processo

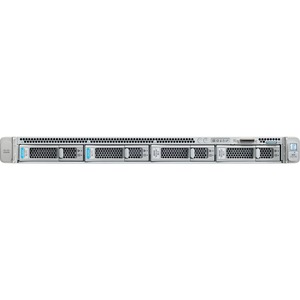

The UCS C220 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666-MHz or 2933-MHz DIMMs with capacity points up to 128 GB, 2666-MHz DCPMMs with capacity points up to 512 GB, two 2 PCI Express (PCIe) 3.0 slots, up to four SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs), and one dedicated internal slot for a 12G SAS storage controller card.

The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® OptaneTM DC Persistent Memory Modules (DCPMMs). With this combination of features, up to 9 TB of memory is possible (12 x 256 GB DDR4 DIMMs and 12 x 512 GB DCPMMs)

The C220 M5 LFF server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Gbase-T Intel x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

Availability: Call or email

$2,291.71
$2,291.71
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C620 Chip - 9 TB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - G200e 8 MB Graphic(s) - 4 3.5" Bay(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - 10 Gigabit Ethernet - Intel Optane Memory Ready - 2 USB 3.0 Port(s) - 3 Year

OVERVIEW:

  • Chipset Manufacturer : Intel
  • Limited Warranty : 3 Year
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Ethernet Technology : 10 Gigabit Ethernet
  • Maximum Memory Supported : 9 TB
  • Number of Total Expansion Bays : 4
  • Controller Type : 12Gb/s SAS
  • Chipset Model : C620
  • Number of Processors Supported : 2
  • Memory Technology : DDR4 SDRAM
  • RAID Supported : Yes
  • Form Factor : Rack-mountable
  • Memory Standard : DDR4-2933/PC4-23466
  • Number of 3.5" Bays : 4
  • Rack Height : 1U
  • Total Number of USB Ports : 2
  • Processor Supported : Xeon Bronze
  • Processor Supported : Xeon Silver
  • Processor Supported : Xeon Gold
  • Processor Supported : Xeon Platinum
  • Height : 1.7"
  • Total Number of Memory Slots : 24
  • Number of USB 3.0 Ports : 2
  • Width : 19"
  • Depth : 31"
  • Intel Optane Memory Ready : Yes
  • Weight (Approximate) : 37.50 lb
  • Graphics Controller Model : G200e
  • Graphics Memory Capacity : 8 MB
  • 64-bit Processing : Yes
  • Additional Info

    Additional Info

    SKU 01468HXC220M5L-BF
    Weight 37.5000
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number HX-C220-M5L
    Width 19"
    Length 1
    Height 1.7"
    Product ID 01468HXC220M5L
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
