Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C610 Chip - 768 GB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 24 Total Memory Slots - Serial ATA RAID Supported, 12Gb/s SAS Controller - G200e 8 MB Graphic(s) - 4 3.5" Bay

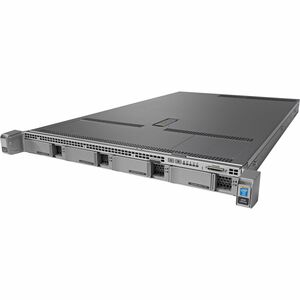

The Cisco® UCS C220 M4 LFF rack server is the newest 2-socket, 1U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from big data to collaboration.

The enterprise-class UFCS C220 M4 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon E5-2600 v3 series processor family that deliver significant performance and efficiency gains. In addition, the UCS C220 M4 SFF server provides 24 DIMM slots, up to 4 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package.

The C220 M4 SFF server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded (on the motherboard) LOM ports. These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance.

The Cisco UCS C240 M4 LFF server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

Availability: Call or email

$1,393.81
$1,393.81
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C610 Chip - 768 GB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 24 Total Memory Slots - Serial ATA RAID Supported, 12Gb/s SAS Controller - G200e 8 MB Graphic(s) - 4 3.5" Bay(s) - Network (RJ-45) - Processor Support (Xeon) - Gigabit Ethernet - Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 Datacenter, Windows Server 2012 R2 Datacenter, Windows Server 2012 R2 Standard, SuSE

OVERVIEW:

  • Operating System Supported : Red Hat Enterprise Linux
  • Operating System Supported : SuSE Linux Enterprise Server
  • Operating System Supported : Windows Server 2012 R2 Standard
  • Operating System Supported : Windows Server 2012 R2 Datacenter
  • Operating System Supported : Windows Server 2012 Datacenter
  • Operating System Supported : Windows Server 2012
  • Operating System Supported : Windows Server 2008 R2
  • Operating System Supported : Windows Server 2008
  • Chipset Manufacturer : Intel
  • Limited Warranty : 3 Year
  • Ethernet Technology : Gigabit Ethernet
  • Maximum Memory Supported : 768 GB
  • Controller Type : 12Gb/s SAS
  • Controller Type : Serial ATA
  • Chipset Model : C610
  • Number of Processors Supported : 2
  • Additional Warranty Information :
    • Three-year parts coverage.
    • Next business day (NBD) onsite parts replacement eight hours a day, five days a week.
    • 90-day software warranty on media.
  • Memory Technology : DDR4 SDRAM
  • RAID Supported : Yes
  • Form Factor : Rack-mountable
  • Memory Standard : DDR4-2133/PC4-17000
  • Number of 3.5" Bays : 4
  • Rack Height : 1U
  • Total Number of USB Ports : 2
  • Processor Supported : Xeon
  • Height : 1.7"
  • Total Number of Memory Slots : 24
  • Number of USB 3.0 Ports : 2
  • Width : 19"
  • Total Number of Expansion Slots : 2
  • Depth : 31"
  • Weight (Approximate) : 39.90 lb
  • Graphics Controller Model : G200e
  • Graphics Memory Capacity : 8 MB
  • Number of PCI Express x16 Slots : 2
  • 64-bit Processing : Yes
  • Network (RJ-45) : Yes
  • Number of Network (RJ-45) Ports : 2
  • Number of VGA Ports : 1
  • Additional Info

    Additional Info

    SKU 01468UCSCC220M4LCH-BF
    Weight 39.9000
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number UCSC-C220-M4L-CH
    Width 19"
    Length 1
    Height 1.7"
    Product ID 01468UCSCC220M4LCH
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
