  • Asus RS700-E11-RS12U-16W10G Barebone System - 1U Rack-mountable - Socket LGA-4677 - 2 x Processor Support - Intel C741 Chip - 12 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 32 Total Memory Slots - Serial ATA, NVMe Controller - AST2600 64 MB Gr

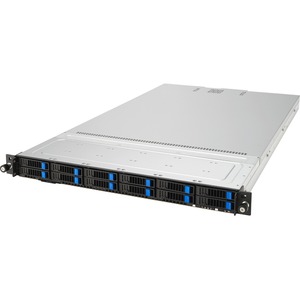

Asus RS700-E11-RS12U-16W10G Barebone System - 1U Rack-mountable - Socket LGA-4677 - 2 x Processor Support - Intel C741 Chip - 12 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 32 Total Memory Slots - Serial ATA, NVMe Controller - AST2600 64 MB Gr Zoom

Asus RS700-E11-RS12U-16W10G Barebone System - 1U Rack-mountable - Socket LGA-4677 - 2 x Processor Support - Intel C741 Chip - 12 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 32 Total Memory Slots - Serial ATA, NVMe Controller - AST2600 64 MB Gr

RS700-E11-RS12U

1U dual-socket server powered by 4th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 12 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM

KEY FEATURES

  • Powerful performance: Powered by 4th Gen Intel Xeon Scalable processors designed for potent data infrastructure from the cloud, to the network, to the intelligent edge
  • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100

    • PCIe 5.0 Ready | Faster storage, graphics and networking capabilities

    PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

    Availability: Call or email

    Regular Price: $3,350.00

    Special Price $3,149.00

    Regular Price: $3,350.00

    Special Price $3,149.00

    ASUS Computer International

    Fast shipping on all in-stock products

    Quick turnaround on RFQs - email us today.

    Buy from a certified veteran-owned small business (VOSB)

    Questions? Call customer service at 503-208-8410.

    Description

    Details

    Asus RS700-E11-RS12U-16W10G Barebone System - 1U Rack-mountable - Socket LGA-4677 - 2 x Processor Support - Intel C741 Chip - 12 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 32 Total Memory Slots - Serial ATA, NVMe Controller - AST2600 64 MB Graphic(s) - Network (RJ-45) - 2 M.2 Interface(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Ethernet - Windows Server 2022 x64, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, Ubuntu Linux, Win

    OVERVIEW:

  • Operating System Supported : Windows Server 2019 x64
  • Operating System Supported : Ubuntu Linux
  • Operating System Supported : CentOS
  • Operating System Supported : SuSE Linux Enterprise Server
  • Operating System Supported : Red Hat Enterprise Linux
  • Operating System Supported : Windows Server 2022 x64
  • Chipset Manufacturer : Intel
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Ethernet Technology : Ethernet
  • Maximum Memory Supported : 12 TB
  • Number of Total Expansion Bays : 12
  • Controller Type : NVMe
  • Controller Type : Serial ATA
  • Chipset Model : C741
  • Number of Processors Supported : 2
  • Memory Technology : DDR5 SDRAM
  • Number of Power Supplies Installed : 2
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Memory Standard : DDR5-4800/PC5-38400
  • Processor Socket : Socket LGA-4677
  • Maximum Power Supply Wattage : 1600 W
  • Rack Height : 1U
  • Total Number of USB Ports : 4
  • Processor Supported : Xeon Bronze
  • Processor Supported : Xeon Silver
  • Processor Supported : Xeon Gold
  • Processor Supported : Xeon Platinum
  • Height : 1.7"
  • Total Number of Memory Slots : 32
  • Width : 17.3"
  • Total Number of Expansion Slots : 4
  • Depth : 33.2"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Intel Optane Memory Ready : Yes
  • Weight (Approximate) : 49.74 lb
  • Graphics Controller Model : AST2600
  • Number of PCI Express x8 Slots : 1
  • Graphics Memory Capacity : 64 MB
  • Number of PCI Express x16 Slots : 3
  • Number of USB 3.2 Gen 1 Ports : 4
  • Number of M.2 Interfaces : 2
  • 64-bit Processing : Yes
  • Network (RJ-45) : Yes
  • Number of VGA Ports : 1

    • Additional Info

    Additional Info

    SKU 01196RS700E11RS12U16W10G-BF
    Weight 49.7400
    Is Featured N/A
    Manufacturer ASUS Computer International
    Manufacturer Part Number RS700-E11-RS12U-16W10G
    Width 17.3"
    Length 1
    Height 1.7"
    Product ID 01196RS700E11RS12U16W10G
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
