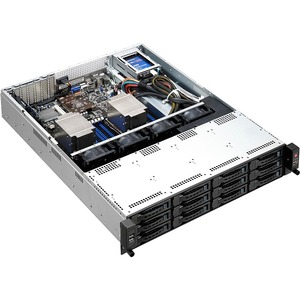

Asus RS520-E8-RS12-E V2 Barebone System - 2U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support - Intel C612 Chip - 1 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 RAID Supported Controller - AST24

Asus RS520-E8-RS12-E V2 Barebone System - 2U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support - Intel C612 Chip - 1 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 RAID Supported Controller - AST24

Regular Price: $2,344.72

Special Price $2,204.04

Qty:

| Add to Compare

Quick Overview

Mass storage and flexibility in 2U and additional OS Kernal Disk

RS520-E8-RS12-E V2 is equipped with 12 SAS/SATA 3.5-inch disk drive bays. The hot-swappable design provides non-stop high availability, making short work of maintenance. RS520-E8-RS12-E V2 also offers great freedom when it comes to the choice of operating system drive type and placement, with M.2 slot available, and two hot-swappable 2.5-inch SSD bays.

Double click on above image to view full picture

Details

Asus RS520-E8-RS12-E V2 Barebone System - 2U Rack-mountable - Socket LGA 2011-v3 - 2 x Processor Support - Intel C612 Chip - 1 TB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 RAID Supported Controller - AST2400 32 MB Graphic(s) - 12 3.5" Bay(s) - 9 SATA Interface(s) - Processor Support (Xeon) - Gigabit Ethernet - 2 USB 3.0 Port(s) - 2 x 770 W

OVERVIEW:

Operating System Supported : Ubuntu Server

Operating System Supported : CentOS

Operating System Supported : SuSE Linux Enterprise Server

Operating System Supported : Red Hat Enterprise Linux

Operating System Supported : Windows Server 2008 R2

Operating System Supported : Windows Server 2012

Operating System Supported : Windows Server 2012 R2

Chipset Manufacturer : Intel

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Ethernet Technology : Gigabit Ethernet

Maximum Memory Supported : 1 TB

Number of Total Expansion Bays : 14

Controller Type : Serial ATA/600

Chipset Model : C612

Number of Processors Supported : 2

Memory Technology : DDR4 SDRAM

RAID Supported : Yes

Number of Power Supplies Installed : 2

Form Factor : Rack-mountable

Environmentally Friendly : Yes

Memory Standard : DDR4-2133/PC4-17000

Number of 3.5" Bays : 12

Processor Socket : Socket LGA 2011-v3

Maximum Power Supply Wattage : 770 W

Rack Height : 2U

Total Number of USB Ports : 4

Processor Supported : Xeon

Height : 3.5"

Total Number of Memory Slots : 16

Number of USB 3.0 Ports : 2

Width : 17.5"

Total Number of Expansion Slots : 4

Depth : 24.2"

Weight (Approximate) : 33.18 lb

Graphics Controller Model : AST2400

Number of PCI Express x8 Slots : 3

Graphics Memory Capacity : 32 MB

Number of PCI Express x16 Slots : 1

64-bit Processing : Yes

Number of SATA Interfaces : 9

Additional Information

SKU	01196RS520E8RS12EV2-BF
Weight	33.1800
Is Featured	N/A
Manufacturer	ASUS Computer International
Manufacturer Part Number	RS520-E8-RS12-EV2
Width	17.5"
Length	1
Height	3.5"
Product ID	01196RS520E8RS12EV2
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
