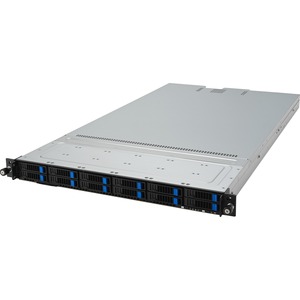

Asus RS500A-E12-RS12U-12W16B Barebone System - 1U Rack-mountable - Socket SP5 LGA-6096 - 1 x Processor Support - AMD Chip - 6 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 24 Total Memory Slots - Serial ATA Controller - AST2600 Graphic(s) - Proc

AMD EPYC™ 9004 single-processor 1U server that supports up to 24 DIMM, 16 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, two single-slot GPUs, and ASUS ASMB11-iKVM

KEY FEATURES

  • Powerful performance:Powered by AMD EPYC 9004 processors with 96 Zen 4 cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts
  • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, 4 NVMe in middle bay, and 3 PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design:On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
  • Enhanced IT-infrastructure management:ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Read for AI and HPC workloads:Up to two single-slot GPUs.

PCIe 5.0 Ready | Faster storage, graphics and networking capabilities

PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

AMD EPYC™ 9004 Series Processors

The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.

World Records Leadership

ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.

ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.

Core Optimizer

Maximizes the processor frequency in multi-core operations, avoiding frequency shifting for reduced latency.

More from the Manufacturer

Availability: Call or email

Regular Price: $2,550.00

Special Price $2,397.00

Regular Price: $2,550.00

Special Price $2,397.00

ASUS Computer International

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Asus RS500A-E12-RS12U-12W16B Barebone System - 1U Rack-mountable - Socket SP5 LGA-6096 - 1 x Processor Support - AMD Chip - 6 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 24 Total Memory Slots - Serial ATA Controller - AST2600 Graphic(s) - Processor Support (EPYC) - Gigabit Ethernet - 2 USB 3.2 Gen 1 Port(s) - 2 x 1200 W

OVERVIEW:

  • Chipset Manufacturer : AMD
  • Ethernet Technology : Gigabit Ethernet
  • Maximum Memory Supported : 6 TB
  • Number of Total Expansion Bays : 12
  • Controller Type : Serial ATA
  • Number of Processors Supported : 1
  • Memory Technology : DDR5 SDRAM
  • Number of Power Supplies Installed : 2
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Memory Standard : DDR5-4800/PC5-38400
  • Processor Socket : Socket SP5 LGA-6096
  • Maximum Power Supply Wattage : 1200 W
  • Rack Height : 1U
  • Total Number of USB Ports : 2
  • Processor Supported : EPYC
  • Height : 1.7"
  • Total Number of Memory Slots : 24
  • Width : 17.7"
  • Total Number of Expansion Slots : 4
  • Depth : 33.2"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Weight (Approximate) : 31.22 lb
  • Graphics Controller Model : AST2600
  • Number of PCI Express x16 Slots : 4
  • Number of USB 3.2 Gen 1 Ports : 2
  • Number of VGA Ports : 1
  • Additional Info

    Additional Info

    SKU 01196RS500AE12RS12U12W16B-BF
    Weight 31.2200
    Is Featured N/A
    Manufacturer ASUS Computer International
    Manufacturer Part Number RS500A-E12-RS12U-12W16B
    Width 17.7"
    Length 1
    Height 1.7"
    Product ID 01196RS500AE12RS12U12W16B
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
